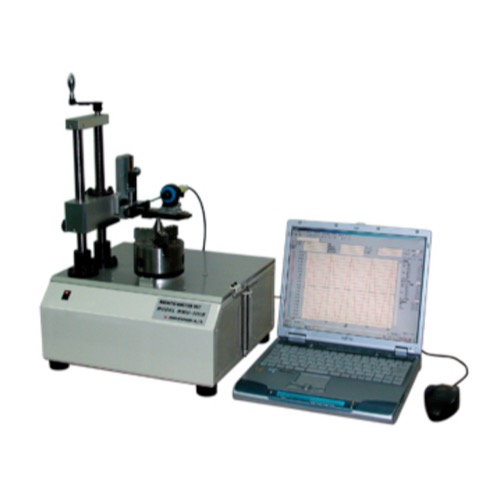

Nihon Denji Sokki (NDK) UHS-1DS Magnet Analyzer ([X: ±30]; [Y: ±30]; [Z: 150]mm)

Measurement Item: Rotation

Automatic measuring distance/ Manual measuring range: [X: ±30]; [Y: ±30]; [Z: 150]mm

Display scope: 0.01mT~3.000T

Measuring range: 30mT, 50mT, 100mT, 300mT, 500mT, 1T, 3T, 5T

Resolution: 36.000P/R

Accuracy: DC magnetic field ±2% (full scale of measuring range)

Functions: Graph display, enlarged data table, CSV data conversion

Probe options: Transverse type: 50102U, 50103U, 50105U; Axial type: 50112U, 50113U

Personal computer used: Windows 10 with USB port

Power input: AC85-240V, 2A

External dimensions [W×D×H]: 350×380×550mm

Weight: approx. 10 kg

Datasheet
