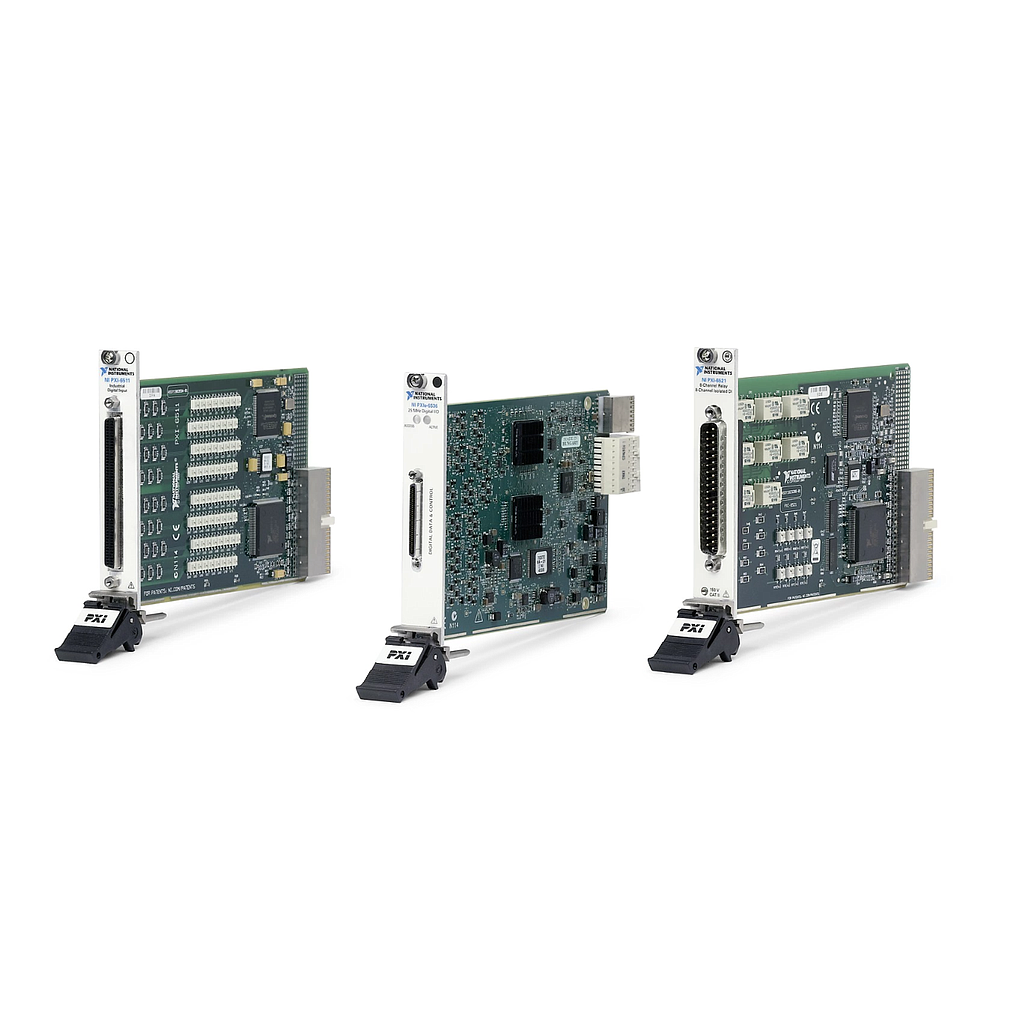

NI PXI-6515 PXI Digital I/O Module (475 mA, -30V ~ 30V)
Manufacturer: NI Model: PXI-6515 P/N: 778964-01 - Contact
Digital I/O Logic Levels: 24 V
Bus Connector: PXI Hybrid
Single-Ended Digital I/O Channel Current Drive: 475 mA
Number of Bidirectional Digital Channels: —
Signaling Type: Single-Ended
Number of Digital Input Only Channels: 32
Digital Input Voltage Range: -30 V to 30 V
Number of Digital Output Only Channels: 32
Output Voltage Range: -30 V to 30 V
Maximum Clock Rate: —
Provides digital input and output capabilities for PXI systems.
The PXI Digital I/O Module supports up to 96 channels of digital I/O, with compatibility for a variety of voltage and isolation levels. Some models include programmable input filters to eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter. You can use the module in application such as manufacturing tests, industrial control, advanced aerospace, laboratory research, and more. The PXI Digital I/O Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
