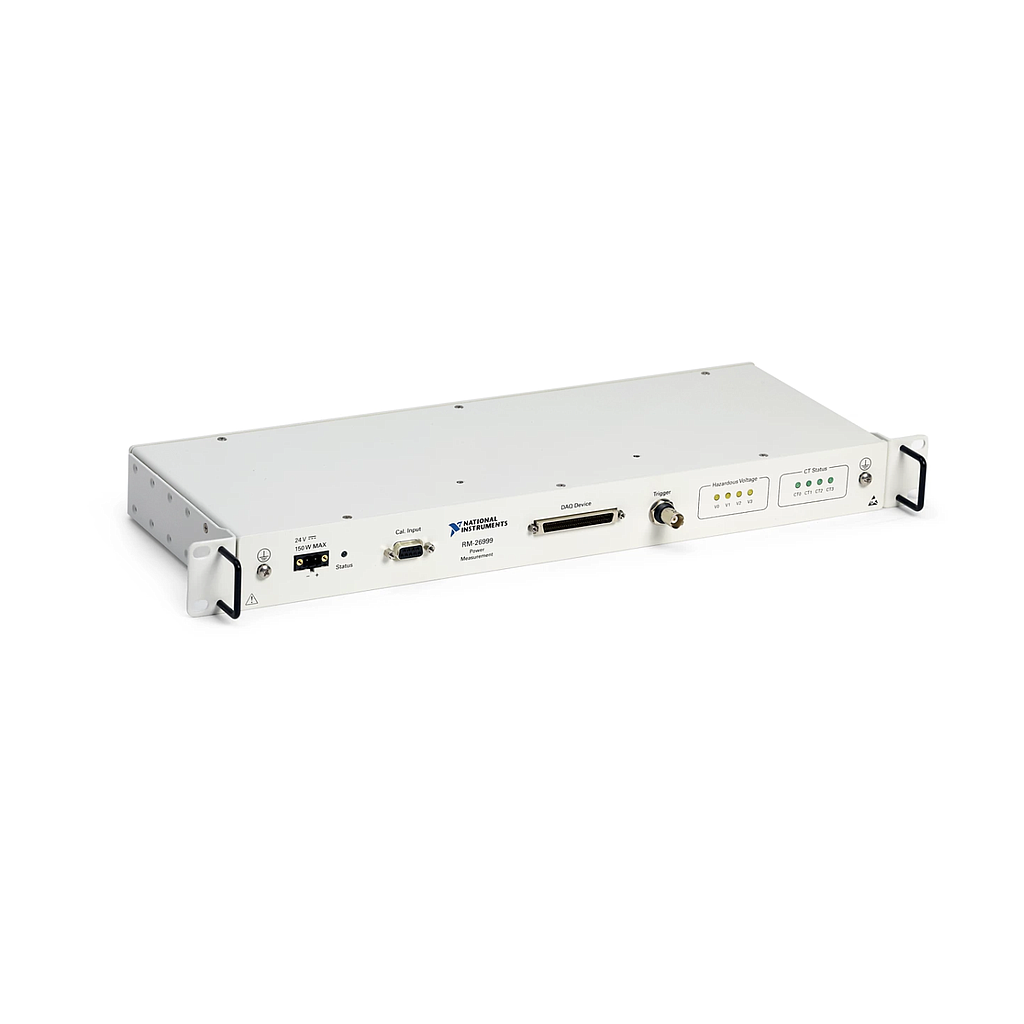

NI RM-26999 Power Measurements Conditioner (4-Channel, 2000 V, 24 V DC)
Manufacturer: NI Model: RM-26999 P/N: 786328-01 - Contact
>> Voltage Input
Input voltage, maximum
1,000 V, Category II
2,000 V peak, other, non-MAINs circuits
Number of channels: 4
>> Current Input
Number of channels: 4
DAQ device measurement voltage ranges: ±1 V, ±2 V, ±5 V, ±10 V
Burden resistors: 0.5 Ω, 1 Ω, 2 Ω, 5 Ω, 10 Ω
Maximum current input: Selectable on the DAQ device
Input protection: Determined by the DAQ device
Shunt accuracy: ±0.05%, metal foil, 2 W, maximum
Shunt gain drift: ±0.2 ppm/°C
>> Power Requirements
Voltage input range: 24 V DC ± 5%
Maximum power consumption: 150 W
Recommended power supply
NI PS-15 (5 A, 120 W)
NI PS-16 (10 A, 240 W)
>> Physical Characteristics
Dimensions: 482.6 mm × 43.9 mm × 156.2 mm
(19.00 in. × 1.73 in. × 6.15 in.)
Weight: 3,020 g (106.50 oz)
Enables simultaneous power measurements when coupled with data acquisition modules or devices.
The Power Measurements Conditioner provides voltage and current signal conditioning for a supported data acquisition module or device to make up to four simultaneous power measurements per conditioner. It also includes attenuation for voltage channels up to 2,000 V and has power, communication, and signal lines for current measurements from current transducers.
Datasheet
