Tray Capacity: 7 Trays Included Dust Tray
Screen Tray Dimension: 870 (L) x 570 (W) x 1120 (H) mm
Power: 240 V, 50/60 Hz, 1 ph, 750 W, 1hp 4.5 A, 1500 RPM
Approx. Weight: 100 kg
Set Consists Of :
NL 1018 X / 001 – P 001 Machine Dust Cover: 1no.
NL 1018 X / 001 - P 002 Dust Tray: 1no.
NL 1018 X / 001 – P 003 Tool Kit Set: 1no.
NL ADC 100 Armortron Controller c/w Mounting Bracket: 1no.
1 Copy of Manual Instruction
Features:

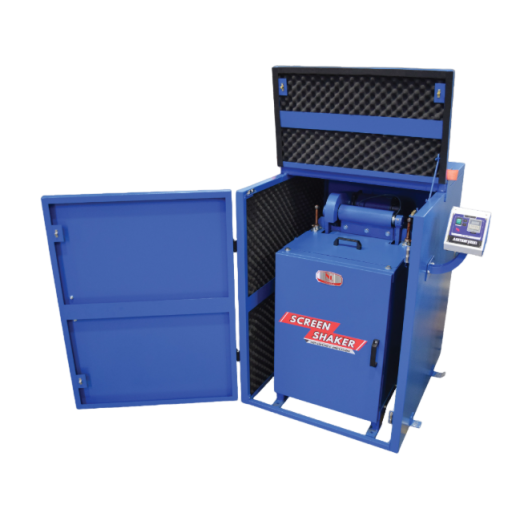

Rapid Separation Processing: Samples can be quickly processed into multiple separations, typically ranging from three to seven separations in as little as three to five minutes.
Vibrating Mechanism: Utilizes a vibrating mechanism to shake a stack of sieves containing the aggregate sample. This shaking action facilitates the separation of particles based on size.
Particle Size Analysis: Enables engineers and researchers to analyze the distribution of particles across different sieve sizes. This analysis is crucial for assessing the quality and properties of the aggregate material.
Versatile Batch Sizes: Capable of handling typical batch sizes up to one cubic foot (0.028 m³) or more, with variations depending on the type of material being tested.
Mechanical Clamping: Equipped with a mechanism for easily securing the stack of sieves in place with just a few quick strokes. This ensures stability during the testing process.
Backup Clutch: Includes a supporting backup clutch for the tray, providing additional stability and support, particularly for tensioning finer sizes of screening.
Optional Accessories: These may come with optional accessories such as a machine dust cover, dust tray, and an Armortron controller with a mounting bracket for added functionality and convenience.
Datasheet
