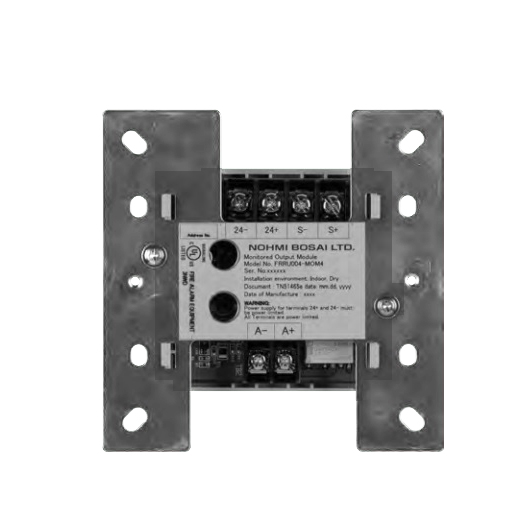

NOHMI FRRU004-MOM4 Monitored Output Module

Rated voltage range of SLC input power (S+,S-): 22.0 to 24.0V

Maximum SLC 24 VDC standby current (S+,S-): 250µA

Maximum SLC 24 VDC alarm current (S+,S-): 1mA

Rating for connected device power (Releasing device and NAC): 24VDC, 2A

Max. supervising current for external 24 VDC input power (24+,24-): 1.6mA

Wiring style: NFPA Class B (Style Y)

End-of-line resistor value for notification appliance: 5.1kΩ, 1/2W

End-of-line device for releasing device: 5.1kΩ, 1/2W with diode

Maximum wiring resistance of output circuit wiring: Refer to Wiring diagram

Maximum wiring capacitance of output circuit wiring: 1µF

Operating temperature range: 0°C to 49°C (32°F to 120°F)

Operating humidity range: 0 to 93% (non-condensing)

Dimensions: 106mm (4.17 inches) (H) × 106mm(4.17 inches) (W)× 29mm (1.14 inch) (D)

Applicable electrical box for installation: North American 64mm (2-1/2 inches)deep 2-gang box

Standard 4 inches square box 38mm (1-1/2 inch) deep box
