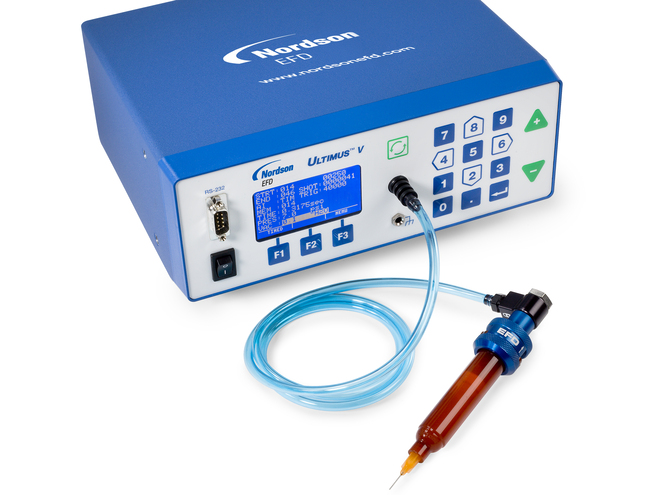

Nordson Ultimus V High Precision Dispenser (0-7 bar)
Manufacturer: Nordson Model: Ultimus V P/N: 7012590 - Contact
Cabinet size: 22.5W x 9.50H x 19.9D cm (8.86W x 3.74H x 7.85D")
Weight: 3.4 kg (7.7 lb)
Internal AC-DC power supply: AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.5 A; DC output (internal): 24 VDC @ 1.7 A
Cycle rate: Exceeds 600 cycles per minute
Time range: 0.0000–9.9999 s
End-of-cycle feedback circuits: 5–24 VDC, 100 mA maximum
Cycle initiate: Foot pedal, finger switch, or 5–24 VDC signal
Air output: 0–7.0 bar (0–100 psi)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
