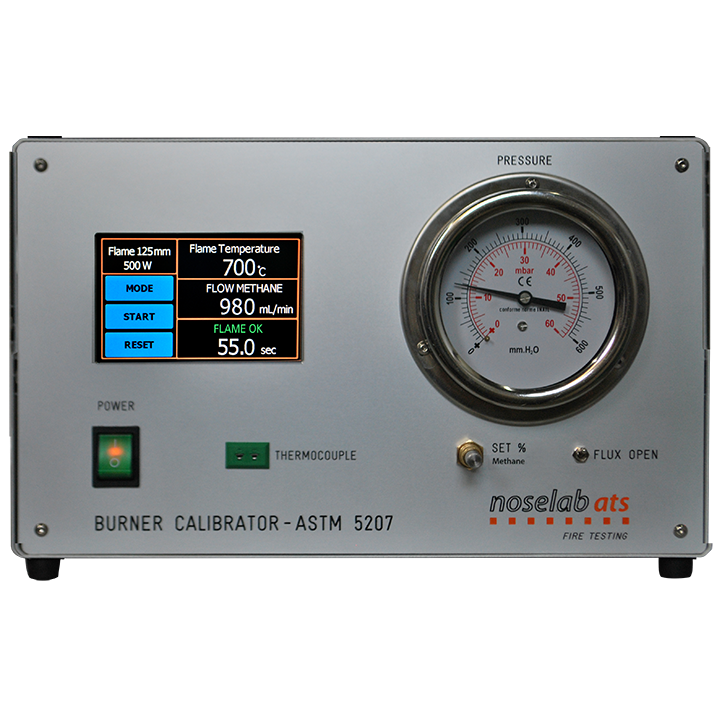

NOSELAB ATS AC09 Burner Calibrator

Technical Specifications

Control unit equipped with measuring instruments: Mass flow meters

Gas flow meter: Range from 0 to 1020 ml/min at 23 °C, 0.1 MPa, with a precision of ±1 %

Air flow meter: Range from 0 to 120 ml/min at 23 °C, 0.1 MPa, with a precision of ±1 %

Manometer: Pressure range from 0 to 0.1 MPa

Flow control valve: For gas and air

Chronometer: To check post-combustion time and flame trigger

Thermometer: Connected to the thermocouple for flame temperature measurement

General

Dimensions: 30 × 38 × 50 cm

Supplied Accessories

Burner: According to ASTM D 5205, 10 mm diameter

Thermal sensors:

nr.1 0.5 mm thermocouple type K equipped with copper block of 9 Ø mm / 9.99 gm for 125 mm flame

nr.1 0.5 mm thermocouple type K equipped with copper block of 5.5 Ø mm / 1.75 gm for 20 mm flame

Stand: For thermocouple

Reference Standard

ASTM: D 5207
