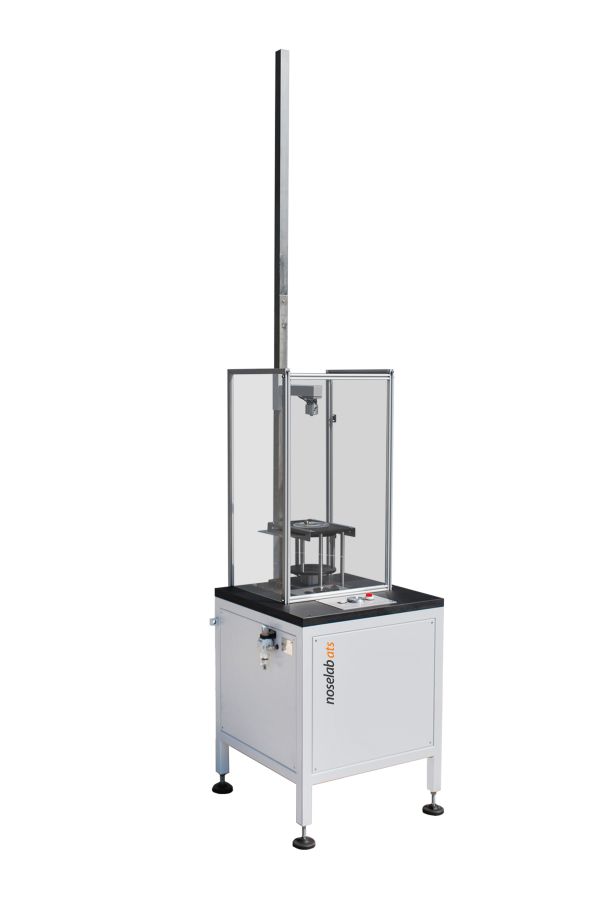

Floor model equipment made of:
Steel frame supporting the clamping device of the specimen and the cantilever arm for the dart.
Clamping device of specimen that blocks the specimen on three points of a 127-mm dia. ring. System is operated by compressed air and a piston. Equipped with air treatment unit.
Electromagnetic dart release system and support for a 660 or 1500 mm height of fall.
Supplied front shield for safety (not shown on the picture in order to better show the test part)
Adjustable feet for levelling the equipment and perpendicularity control system of falling dart by plumb line and centring disk.
Overall dimension: 700x700x2860 mm
Weight: 60 kg (approx.)
Power supply: 230V, 50 Hz, singlephase.
Air: 5 bar
