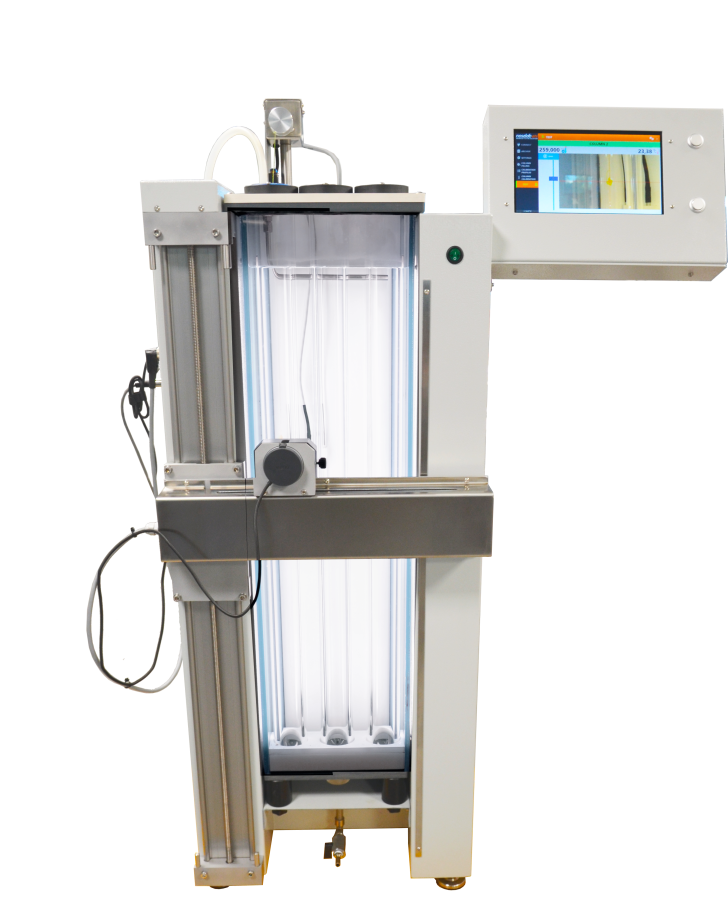

NOSELAB ATS Density Gradient Column Gradient Column Micro Auto Density Tester

Lexan-PVC bath capacity 18 litres

Two or three columns 850 mm length, 55 mm Ø, basic configuration

Touch screen display 9” for control apparatus

Integrated system for circulating the water flow inside the tank

Integrated system heating and cooling for the autonomous management of the tank temperature with room temperature from 15°C to 27°C, heating 10°C/h, cooling 3°C/h, without external systems

Possibility of connection to an auxiliary cooling system, such as chiller or open system, particularly in hot environments or to accelerate the reaching of the set temperature

Camera for viewing measurement points on the display

Automatic detection of the column measurement height (±10 microns) via encoder

Management of calibration curves with up to 24 calibration spheres each

Possibility of video recording of the entire column for post-processing of the data

Buttons for manual movement of the Y axis

Drain system at the bottom of the column for easy emptying

Double LED strips for optimal lighting

Overall dimensions 380 x 780 x 1220 h mm

Weight 85 kg

Power supply 230 V – 50 Hz – 2 kVA monophase

Standards

ASTM D1505

ISO 1183-2
