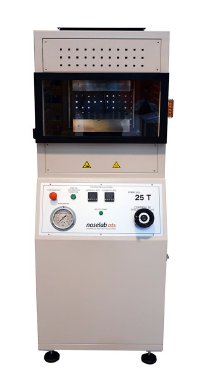

Maximum Exercise Pressure 24,000 Kg
Set of 2 heating plates 300 x 300 mm in special aluminum alloy, each equipped with n.4 / 0.8 kVA cartridge heater
Control panel with digital display, thermo regulators (temperature range 0 ÷ 300°C), for the independent thermoregulation of each plate
A cooling coil is inserted in each heating plate to connect to an air or water circuit supply
Cooling is necessary up to the solidification temperature of material before opening the mold
The heating plates are also equipped with a thermostat against overheating
The lower plate is lifted with an hydraulic piston, while the upper plate is fixed
Characteristics
Opening of the plates 0 ÷ 150 mm
Range of pressure 10 ÷ 234 kN (25T)
Advisable max working pressure 680 ÷ 700 bar
Working temperature ambient ÷ 300°C
Window mold 270 x 270
Thickness 4 mm (or size on request)
HEAT / COOL PROGRAMMING
PLC with touch-screen display, it allows to set molding cycles defining the temperatures and the thermal cycle
Same display it is possible to control the main parameters, such as the elapsed time, the current set point, the time remaining until the end of the current cycle, etc.
Cooling speed is set in the test cycle and is modulated by the control PID independently in the two planes of the press (max 40 °C / min)
Pressure cycle with precision 2% of the applied force (max 240 kN), regulation 10 N oscillations during regulation < 1 kN
Generals
Dimensions 930 x 690 x 1750 H mm
Weight Kg 320
Power 230V, 50Hz
