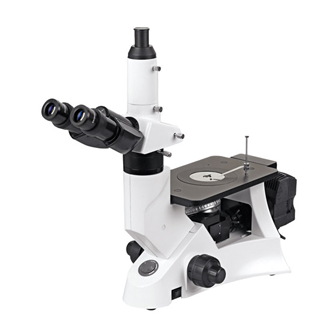

Novel NIM-100 Metallurgical Microscope (Trinocular,30°,48-75mm,EW10×/ 20)
Manufacturer: Novel Model: NIM-100 Origin: China - Contact
Viewing Head: Trinocular head inclined at 30°, Interpupillary 48-75mm
Eyepiece: High-point, Extra wide field eyepiece EW10×/ 20
Infinitive Plan Achromatic Objectives:
4×/0.1
10×/0.25
20×/0.4
40×/0.6
Nosepiece: Quadruple nosepiece
Stage: Plain stage with slide clips
Focusing:
Coaxial fine & coarse adjustment
Vertical objective movement
Coarse stroke: 37.7mmper rotation
Fine stroke: 0.2mm per rotation
Illumination: Halogen lamp 6V/ 30W, Kohler illumination
Filter: Blue, Green, Yellow, Ground glass
