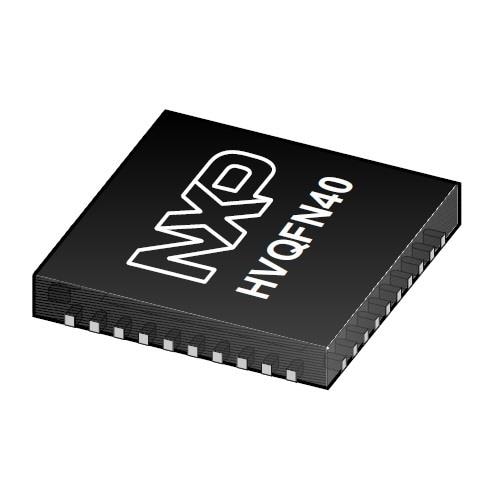

NXP K32W041AMK RF Microcontrollers - MCU High Performance and Ultra-Low-Power MCU for Zigbee,Thread, and Bluetooth LE 5.0 with Built-in NFC option

Core: ARM Cortex M4

Technology: Si

Data RAM Size: 152 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, SPI, Serial

Mounting Style: SMD/SMT

Number of I/Os: 22 I/O

Number of Timers: 2

Processor Series: K32W041

NF - Noise Figure: 7 dB, 7.3 dB

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 640 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.9 V

Number of ADC Channels: 8 Channel

Maximum Clock Frequency: 48 MHz

Operating Supply Voltage: 1.9 V to 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
