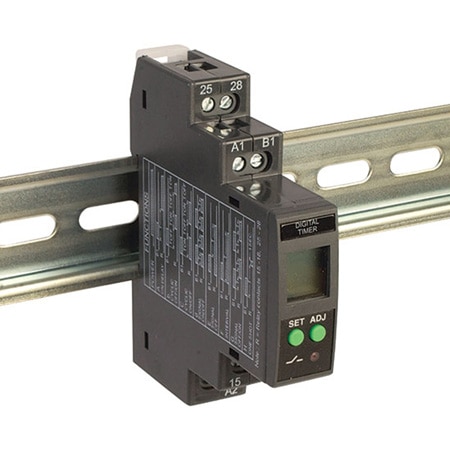

OMEGA AU-AMT12-D2 DIN Rail Mounted Multi-Functional Digital Timer (3 Digit Display, 24 to 265 Vac/Vdc)

Reset: 200 ms

Width: 17.5 mm

Height: 89 mm

Length: 76 mm

Weight: 85 g

Accuracy: ± 0.5 %

Frequency: 50/60 Hz

Wire Gauge: 22 to 14 AWG

Form factor: DIN Rail

Samples,Max: 1 Hz

Timer Range: 0.1 second to 999 hours

Display Type: 3 Digit Display

Contact Rating: 8A @ 240 Vac/24 Vdc (resistive)

Control Output: NO/NC

Supply Voltage: 24 to 265 Vac/Vdc

Electrical Life: 10,000 switching cycles

Mechanical Life: 2,000,000 switching cycles

Measurement Type: Time

Number of Relays: 1

Enclosure Ratings: IP30

Power Consumption: 10 VA

Supply Power Type: AC/DC

Terminal Protection: IP29

Screw Terminal Torque: 0.40 Nm

Storage Temperature, Max: 65 °C

Storage Temperature, Min: -20 °C

Number of Timer Functions: 18

Operating Temperature, Max: 55 °C

Operating Temperature, Min: -10 °C
