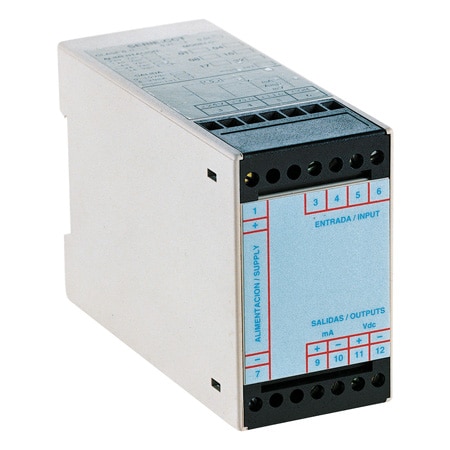

OMEGA CCT-08-0/1V DIN Rail Signal Conditioner Series with Model Specific Input Type (AC Voltage, 0 to 1 Vac)

Width: 45 mm

Height: 75 mm

Length: 110 mm

Weight: 270 g

Accuracy: ± 0.2 %

Mounting: DIN Rail 46277 and EN 50022

Approvals: CE, UL

Bandwidth: 1.5 Hz (-3 dB)

Isolation: 2000 Vrms

Materials: Polycarbonate, RAL 7032

Input Type: AC Voltage

Wire Gauge: 14 AWG

Overvoltage: 75 V

Output Value: Process

Output Detail: 4 to 20 mA and 0 to 10 Vdc standard; 0 to 20 mA via jumper select

Output Ripple: ≤0.5%

Output Signal: Current, Voltage

Response Time: ≤250 ms

Serial Number: Break Protection: Jumper selectable, upscale (>20 mA) or downscale (<4 mA)

Approvals Note: Enclosure: UL 94 V-1, Terminal Housing: UL 94-2

Supply Voltage: 110 Vac

Impedance Input: 100 kΩ

Number of Inputs: 1

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP20, IP40

Power Consumption: max 1.5 VA

Supply Power Note: 110 Vac (standard); 220 Vac or 24 Vdc (optional) (±10% tolerance on all power supplies)

Supply Power Type: AC

Voltage Output Range: 0 to 10 Vdc

Temperature Coefficient: ≤0.015%/°C

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -30 °C

Current Measurement Range: N/A

Voltage Measurement Range: 0 to 1 Vac

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -10 °C

Frequency Measurement Range: N/A

Temperature Measurement Range: N/A
