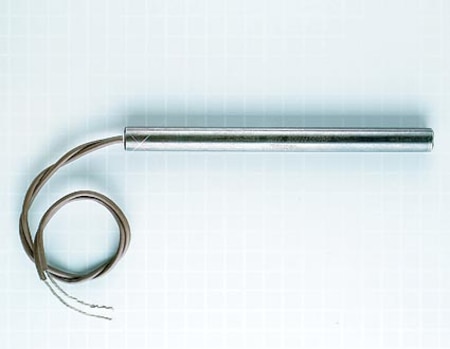

OMEGA CIR-5072/240V Incoloy Cartridge Heater 0.75 in OD 2.25 to 48 in Long (7 in, 1000 W, 66 W/in²)
Manufacturer: OMEGA Model: CIR-5072/240V - Contact
Weight: 0.57 lb
Insulation: Refractory Metal
Lead Length: 14 in
Heater Power: 1000 W
Lead Material: Nickel Wire
Power Density: 66 W/in²
Supply Voltage: 240 Vac
Heater Diameter: 0.75 in
Sheath Material: Incoloy
Cartridge Length: 7 in
Lead Length Note: Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available
Internal Connection: Patented connector for high reliability and longer life. Vibration and shock resistant construction
Heater Wire Material: Nickel-chromium resistance wire
Sheath Material Note: Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip
Additional Features 1: Standard
Lead Temperature, Max: 450 °C
Sheath Temperature, Max: 816 °C
Heater Wire Material Note: Premium grade nickel chromium resistance wire for longer life, and consistent performance
