Accuracy: ± 10 %
Altitude: Up to 2000m (6561 ft)
Cable Type: Coaxial
Sensitivity: -4 mV/μm
Color Options: Red
Housing Length: 1.77 in
Supply Voltage: -24 Vdc

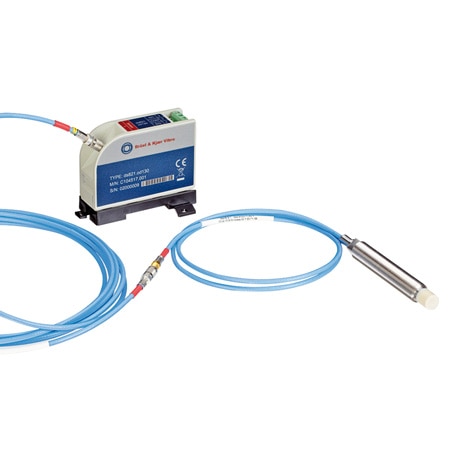

Transducer Type: Displacement Measurement
Housing Diameter: 0.433 in
Impedance Output: 50 Ω
Measurement Note: Eddy current Mesurment 4 mm (approx. 0.5 … 4.5 mm distance from the object to be measured corresponding to an output signal of approx. -2 VDC … -18 VDC )
Measurement, Max: 4 mm
Measurement, Min: 0 mm
Electrical Output: 0 to Ub + 2 V
Enclosure Ratings: IP68
Power Consumption: 12 mA
Supply Power Note: -24 VDC (-18 VDC … -28 VDC)
Frequency Response: DC to 10 kHz (-3 dB damping of the output signal)
Sensor Body Length: 45 mm
Unthreaded Section: 15 mm
Zero/Balance Error: ±100 μm
Electrical Connection: Coaxial connector (SAA), push-pull self-latching
Process Connection Size: 3/8 in
Process Connection Type: UNF
Nominal ECDS System Length: 5 m
Operating Temperature, Max: 180 °C
Operating Temperature, Min: -55 °C
Length of Sensor with Integrated Cable: 1 m
