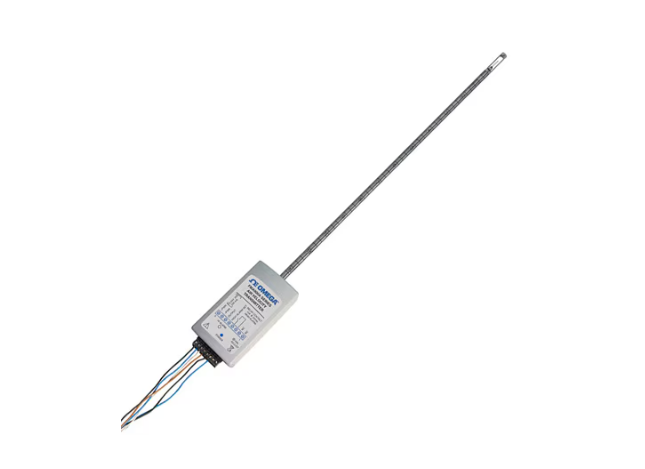

OMEGA FMA902R-V1 Hot Wire Air Velocity Transmitter with Alarm Contact (Remote 12" Probe, 0-5 Vdc, 0-1000 FPM)
Manufacturer: OMEGA Model: FMA902R-V1 - Contact
Velocity Range: 0 to 1000 FPM
Accuracy: ± 15 FPM Full Scale Accuracy
Max Process Temperature: 93 °C (199 °F)
Probe Diameter: 1/4"
Probe Length (Maximum): 12"
Output Signal: 0 to 5 Vdc
Display: No Display
Features: Remote Probe, SPST Relay
Air Velocity Probe: remote probe
High Alarm Set Point: Adjustable from 0 to 100% of air flow range
Alarm Indication: Red LED on the back plate
Alarm Deadband: 5% of FS
Relay: One 12V SPST NO relay
Contact Rating: 10A @ 24 Vdc
Operating Ambient Temperature:
Sensor Probe: -40 to 93ºC (-40 to 199ºF)
Electronic Case: 0 to 50ºC (32 to 122ºF)
Power Indicator: Green LED
Power: 15 to 24 Vdc @ 200 mA
Dimensions: 89 H x 51 W x 32 mm D (3.5 x 2 x 1.25")
Weight: 160 g (5.6 oz)
Comes complete with 305 mm (12") long remote probe, and operator’s manual
