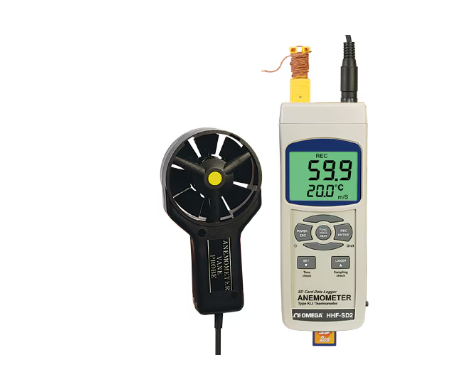

OMEGA HHF-SD2 Vane Anemometer with Real Time Data Logger (70 to 4921 FPM)

Display: 52 x 38 mm (2.05 x 1.50") LCD with green backlight (on/off)

Measurement Units:

     Velocity: m/s, km/h, ft/min, knots, mile/hr

     Temperature: ºC or ºF

Sampling Time:

     Auto: 1 to 3600 seconds

     Manual: Push the data logger button once, will save data one time

Memory Card: SD memory card (with optional SD card)

Temperature Compensation: Automatic

Display Update: At 1 second

Data Output:

     RS232: With optional cable/software

     USB: With optional cable/software

Operating Temperature: 0 to 50ºC (32 to 122ºF)

Operating Humidity: Less than 85% RH

Power: 6 “AAA” alkaline or heavy-duty batteries (included), or 9V power adaptor (optional)

Current Draw: 15 mA DC (without SD card or backlight), 36 mA (all functions)

Weight: 515 g (1.13 lb)

Dimensions:

      Instrument: 203 L x 76 W x 38 mm D (8 x 3 x 1.50")

      Probe: 72 mm dia (2.83")

Air Temperature:

      Measuring Range: 0 to 50ºC (32 to 122ºF)

      Resolution: 0.1ºC (0.1ºF)

      Accuracy: ±0.8ºC (1.5ºF)

Comes complete with vane probe, hard carrying case, 2 GB SD card, Type K thermocouple, 6 “AAA” batteries and operator’s manual
