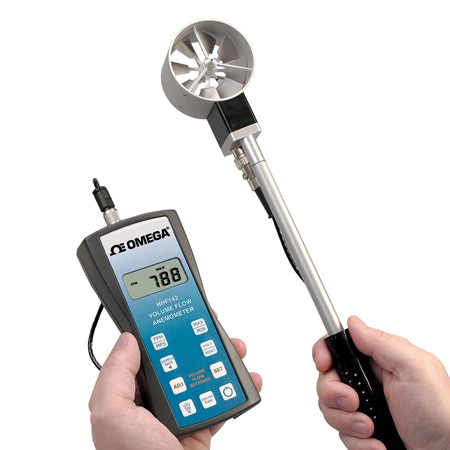

OMEGA HHF142B Rotating Metal Vane Anemometer Kit w/ Volume Flow (Handheld, 7800 m/h, 100 °C, Thermocouple Type K or Thermistor)

Width: 1.5 in

Height: 6.5 in

Length: 3.25 in

Accuracy: ± 1 %

Resolution: 1 FPM

Form factor: Handheld

Battery life: 150 hr

Cable Length: 5 ft

Display Type: Backlit LCD

Probe Length: 2.8 in

Accuracy Note: ± 1.0% of reading ± 1-digit

Output Signal: N/A

Vane Diameter: 2.75 in

Certifications: NIST Traceable Calibration

Probe Diameter: 2.75 in

Number of Digits: 4

Temperature Note: Operating Temperature: Instrument: 0 to 50°C (32 to 125°F) Probe: -20 to 100°C (-4 to 212°F)

Air Velocity, Max: 7800 m/h

Air Velocity, Min: 50 m/h

Supply Power Note: 150 hours Appx

Battery Size and Type: Alkaline AA

Temperature Sensor Type: Thermocouple Type K or Thermistor

Process Temperature, Max: 100 °C

Process Temperature, Min: -20 °C

Volumetric Flow Rate, Max: 9999 CFM

Volumetric Flow Rate, Min: 0 CFM

Enclosure Temperature, Max: 50 °C

Enclosure Temperature, Min: 0 °C

Datasheet
