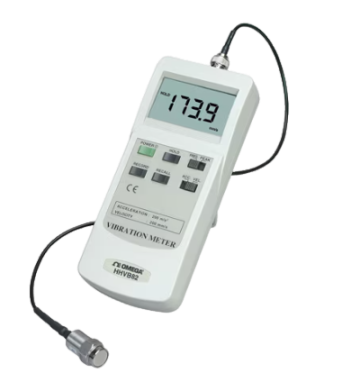

OMEGA HHVB82 Handheld Vibration Meter with Magnetic Mount (200 m/s^2, 200 mm/s)

RMS or Peak Vibration Readings (Peak value = 1.414 RMS value)

Acceleration Range: Up to 200 m/sec^2

Velocity Range: Up to 200 mm/sec

Frequency Range: 10 Hz to 1 kHz; sensitivity meets ISO 2954

Functions: Auto off (after approx 20 min), reading hold, record minimum and maximum

Accuracy: ±5% +2 digits reading, 160 Hz, 80 Hz @ 23 ±5ºC

Calibration Point: Velocity 50 mm/sec (160 Hz), acceleration 50 m/sec2 (160 Hz)

Operating Temperature: 0 to 50ºC (32 to 122ºF)

Operating Humidity: <80% RH (non-condensing)

Power: 9 V alkaline battery (included)

Sampling Time: Approximately 1 sec

Meter Dimensions: 185 H x 78 W x 38 mm D (7.3 x 3.1 x 1.5')

Sensor Dimensions: 16 D x 29 mm H (0.6 x 1.4')

Sensor Cable Length: 1.2 m (4 ft)

Meter Weight: 274 g (0.6 lb)

Sensor Weight: 38 g (0.08 lb)
