Weight: 120 g
Cable Type: Insulated Shielded
Sensitivity: -8 mV/μm
Applications: Rotor Speed, Shaft Displacement, Shaft Vibration
Cable Length: 5 m
Output Detail: Signal-Voltage : USIG = UB + 2 V;Signal current : Imax = 15 mA;Noise : < 1 mVss ( ... 10 kHz);Source resistance, dynamic : < 5 Ω;RLoad : > 1 k Ω;
Sensor Length: 70 mm
Housing Length: 2.76 in
Supply Voltage: -18 to -30 Vdc
Linearity Error: ±2%

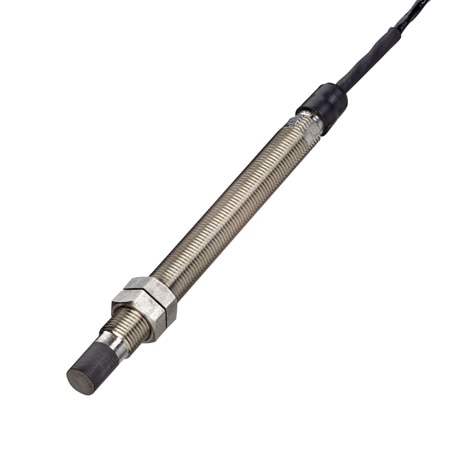

Transducer Type: Displacement Measurement
Housing Diameter: 0.334 in
Measurement Note: Eddy current Mesurment Relative Shaft Vibration, Relative Shaft Displacement
Measurement, Max: 1.5 mm
Measurement, Min: 0 mm
Electrical Output: 0 to Ub + 2 V
Enclosure Ratings: IP54
Power Consumption: 20 mA
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -20 °C
Operating Temperature, Max: 110 °C
Operating Temperature, Min: 0 °C
Thermal Effect on Span error, Max: < ± 5 % at room temperature + 22 °C < ± 10 % in operating temperature range
