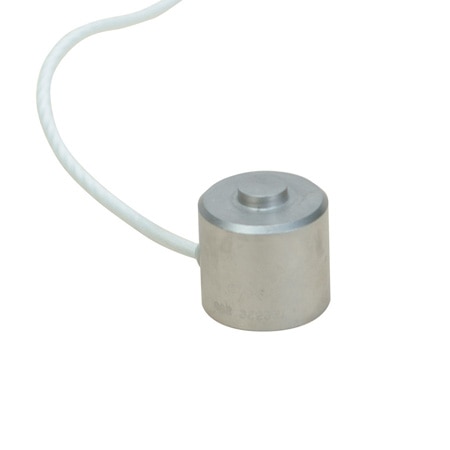

OMEGA LC304-7.5K 1 in Diameter, Miniature Button Compression Load Cell (7500 lbF)

Height: 1 in

Accuracy: ± 0.5 %

Linearity: ± 0.5%

Materials: Stainless Steel

Force Type: Compression

Hysteresis: ± 0.5%

Cable Length: 5 ft

Overload, Max: 300% FS

Repeatability: ± 0.5%

Safe Overload: 150% FS

Load Cell Type: Button

Outer Diameter: 1 in

Supply Voltage: 10 Vdc

Bridge Resistance: 350 Ω

Electrical Output: 2 mV/V

Enclosure Ratings: IP65

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Load Cell Capacity: 7500 lbF

Zero/Balance Error: ± 2%

5-Point Calibration: 0%, 50%, 100%, 50%, 0%

Thermal Span Effect: 0.036% FSO/°C

Thermal Zero Effect: 0.009% FSO/°C

Electrical Connection: Cable

Full Scale Deflection: 0.003 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 107 °C

Operating Temperature, Min: -54 °C
