Height: 1.8 in
End Rod: REC-100M
Approvals: FM
Linearity: 0.001
Materials: 17-4 PH Stainless Steel
Force Type: Compression, Tension
Hysteresis: 0.10%
Load Button: LBC-100
Cable Length: 10 ft
Non-Linearity: 0.001
Overload, Max: 300% FS
Repeatability: 0.05%
Safe Overload: 150% FS

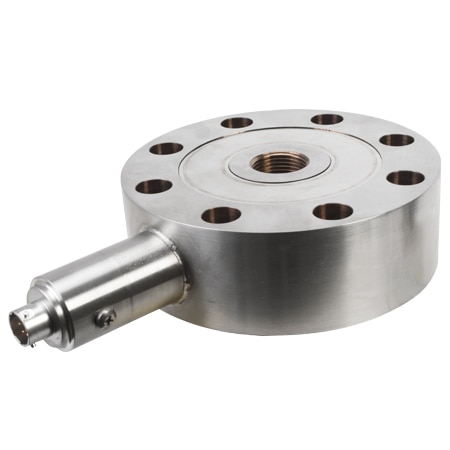

Load Cell Type: Pancake
Outer Diameter: 5.5 in
Supply Voltage: 10 to 28 Vdc
Trim Pot Access: O-ring sealed screws on side cover
Input Resistance: 350 ± 10 Ω
Electrical Output: 4-12-20 mA
Output Resistance: 350 ± 10 Ω
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 15000 lbF
Zero/Balance Error: 4 mA +10%, -2% adjustable
Thermal Span Effect: ± 0.009% rdg/°C
Thermal Zero Effect: ± 0.009% FSO/°C
Through Hole Thread: 1"-14 UNS
Additional Features 1: Potentiometers Standard
Electrical Connection: Submersible Cable
electrical-connection: Submersible Cable
Electrical Output Note: FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional
Wiring/Connector Table: Red: (+) Input; Black: (-) Input; Green: Case
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 75 °C
Operating Temperature, Min: -40 °C
