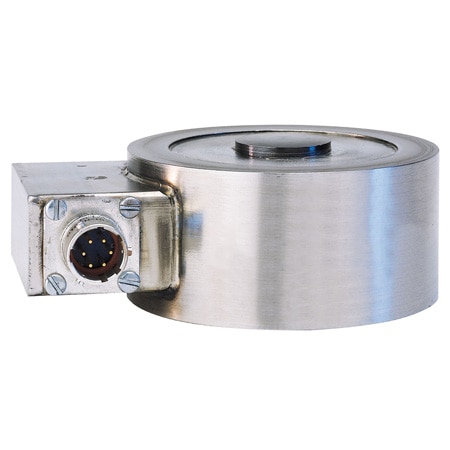

OMEGA LCM411-2.5K Low Profile, Compression Load Cells for Industrial Weighing (2500 kgf)

Height: 32 mm

Linearity: ± 0.13%

Materials: 17-4 PH Stainless Steel

Force Type: Compression

Hysteresis: ± 0.12%

Overload, Max: 300% FS

Repeatability: ± 0.05%

Safe Overload: 150% FS

Load Cell Type: Pancake

Outer Diameter: 66 mm

Supply Voltage: 10 Vdc

Mating Connector: MIL-26482-I 10-6S

Bridge Resistance: 350 ± 5 Ω

Electrical Output: 3 mV/V

Enclosure Ratings: IP66

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 2500 kgf

Zero/Balance Error: ± 1%

5-Point Calibration: 0%, 50%, 100%, 50%, 0%

Thermal Span Effect: 0.006% FSO/°C

Thermal Zero Effect: 0.0045% FSO/°C

Electrical Connection: MIL-26482-I 10-6P

Full Scale Deflection: 0.003 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 107 °C

Operating Temperature, Min: -54 °C

Cable Assembly with Twist Lock Connector: CA-6PC24-3-015
