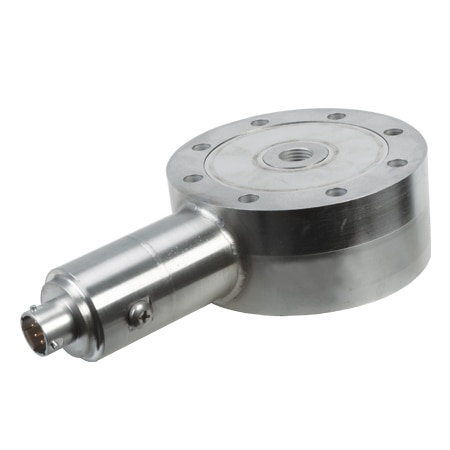

OMEGA LCM412-7.5K5BC2IS Metric, Intrinsically Safe, Low Profile Load Cells (7500 kgf)

Height: 50 mm

Approvals: FM

Linearity: ± 0.1%

Materials: Stainless Steel

Base Plate: LCM412-TP350

Force Type: Compression

Hysteresis: 0.001

Non-Linearity: 0.001

Overload, Max: 300% FS

Repeatability: 0.0005

Safe Overload: 150% FS

Load Cell Type: Pancake

Outer Diameter: 102 mm

Supply Voltage: 10 to 28 Vdc

Input Resistance: 350 ± 10 Ω

Electrical Output: 4-12-20 mA

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 7500 kgf

Zero/Balance Error: 4 mA +10%, -2% adjustable

5-Point Calibration: 0%, 50%, 100%, 50%, 0%

Thermal Span Effect: ± 0.009% rdg/°C

Thermal Zero Effect: ± 0.009% FSO/°C

Through Hole Thread: M24 x 2.0

Additional Features 1: Potentiometers Standard

Electrical Connection: M12 4 pin Female

Electrical Output Note: Two Directions Output

Wiring/Connector Table: Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 75 °C

Operating Temperature, Min: -40 °C
