Height: 20 mm
Linearity: ± 0.20%
Materials: 17-4 PH Stainless Steel
Force Type: Compression, Tension
Hysteresis: ± 0.10%
Overload, Max: 300% FS
Repeatability: ± 0.1%
Safe Overload: 150% FS

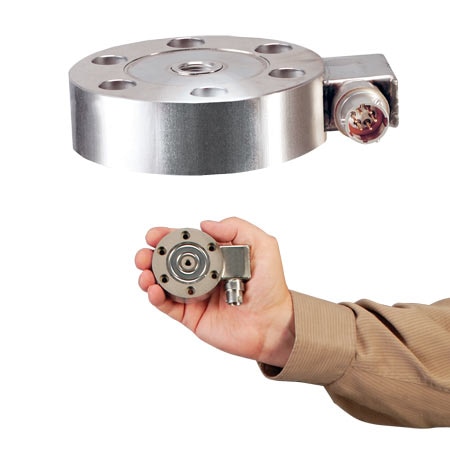

Load Cell Type: Pancake
Outer Diameter: 64 mm
Supply Voltage: 10 Vdc
Input Resistance: 350 ± 10 Ω
Mating Connector: MIL-26482-I 10-6S
Electrical Output: 2 mV/V
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 5 kgf
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in tension)
Thermal Span Effect: 0.0036% FSO/°C
Thermal Zero Effect: 0.0036% FSO/°C
Electrical Connection: MIL-26482-I 10-6P
Full Scale Deflection: 0.003 in
Wiring/Connector Table: Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 121 °C
Operating Temperature, Min: -54 °C
