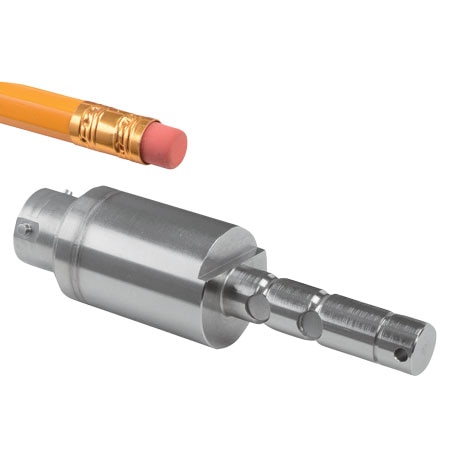

OMEGA LCP375-1.5K Load Pin Load Cell with Temperature Compensation (1500 lbF)

Length: 2.75 in

Accuracy: ± 0.5 %

Linearity: ± 0.50%

Materials: Stainless Steel

Force Type: Compression, Tension

Hysteresis: ± 0.50%

Overload, Max: ≥300% FS

Repeatability: ± 0.15%

Safe Overload: 150% FS

Load Cell Type: Load Pin

Outer Diameter: 0.34 in

Supply Voltage: 10 Vdc

Bridge Resistance: 350 Ω

Electrical Output: 1 mV/V

Enclosure Ratings: IP65

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: NIST

Load Cell Capacity: 1500 lbF

Zero/Balance Error: ± 1%

Thermal Span Effect: ± 0.009% FSO/°C

Thermal Zero Effect: ± 0.009% FSO/°C

Electrical Connection: MIL-26482-I 10-6P

Wiring/Connector Table: Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 121 °C

Operating Temperature, Min: -53 °C
