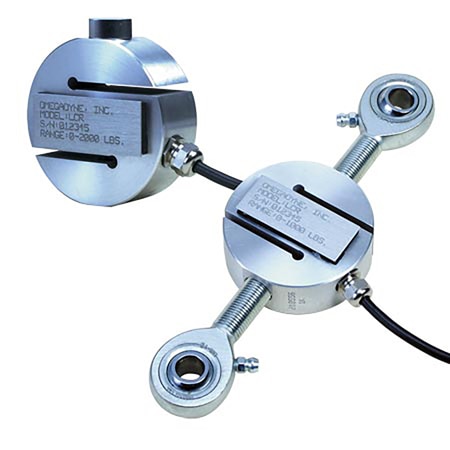

OMEGA LCR-150 Lightweight, Aluminum S-Beam Load Cells for Industrial Use (150 lbF)

Width: 0.9 in

Height: 1.94 in

Weight: 0.4 lb

End Rod: REC-014M

Linearity: ± 0.03%

Materials: Aluminum

Force Type: Tension

Hysteresis: ± 0.02%

Wire Gauge: 24 AWG

Load Button: LBC-014

Cable Length: 20 ft

Overload, Max: 300% FS

Repeatability: ± 0.01%

Safe Overload: 150% FS

Load Cell Type: S-beam

Supply Voltage: 10 Vdc

Creep in 20 min: ± 0.03%

Bridge Resistance: 350 Ω

Electrical Output: 3 mV/V

Enclosure Ratings: IP55

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 150 lbF

5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in tension)

Thermal Span Effect: ± 0.0015% rdg/°C

Thermal Zero Effect: ± 0.0027% FS/°C

Electrical Connection: Cable

Full Scale Deflection: 0.01 in

Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

Process Temperature, Max: 71 °C

Process Temperature, Min: 17 °C

Operating Temperature, Max: 71 °C

Operating Temperature, Min: -18 °C
