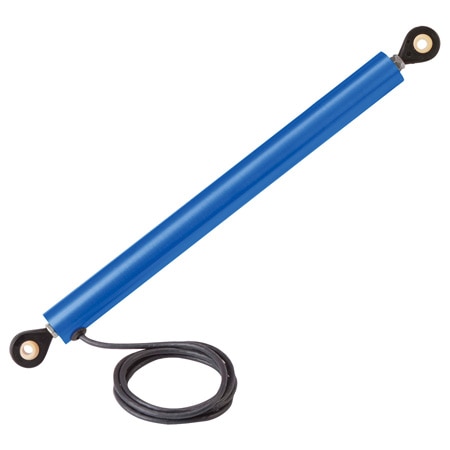

OMEGA LDI-119-200-A020A LVIT Linear Position Sensors with Rod Ends

Shock: 1000 g, 11 ms

Bandwidth: 300 Hz (-3 dB)

Vibration: 5 to 20 Hz, 0.5" p-p; 20 to 2000 Hz, 4.2 g p-p

Resolution: 0.025% of FS

Housing Length: 267 mm

Linearity Error: ±0.15% of Full Scale Output (FSO) typical, ±0.25% max

Housing Diameter: 19 mm

Housing Material: Anodized Aluminum

Measurement, Max: 200 mm

Measurement, Min: 0 mm

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP67

Relative Humidity: 95% RH, non-condensing

Additional Features 1: Radial Cable Exit with Swivel Rod Eye Ends

Temperature Coefficient: 0.015% of FS/°C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -20 °C
