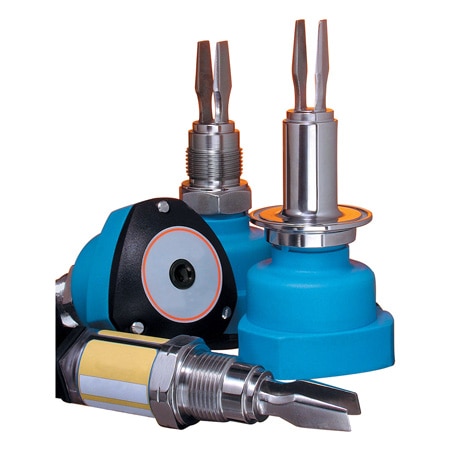

OMEGA LTUR-2022-32INCH Threaded, Flanged, Tri-Grip Tuning Fork Level Switches (1 in, NPT Male, SPDT NO/NC, Selectable)
Manufacturer: OMEGA Model: LTUR-2022-32INCH - Contact
Accuracy: ± 0.1 %
Approvals: RoHS
Materials: Aluminum
Time Delay: 1 to 20 sec
Switch Type: SPDT NO/NC, Selectable
Probe Length: 32 in
probe-length: 32 in
Repeatability: ± 0.02 inH2O
Switch Rating: 5 A @ 250 Vac
Supply Voltage: 20 to 60 Vdc, 20 to 264 Vac
supply-voltage: 20 to 60 Vdc, 20 to 264 Vac
Switching Point: 12 mm from Tip
Viscosity Range: 0.5 to 5000 cSt
Insertion Length: 32 in
Enclosure Ratings: IP65, NEMA Type 4
Materials, Wetted: 316 Stainless Steel
Power Consumption: 10 mA
Supply Power Type: AC/DC
Media Compatibility: Oil, Solvents, Water
Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block
electrical-connection: 1/2 in NPT female Conduit with Screw Terminal block
Operating Pressure, Max: 725 psi
Process Connection Size: 1 in
Process Connection Type: NPT Male
Operating Temperature, Max: 81 °C
Operating Temperature, Min: -10 °C
