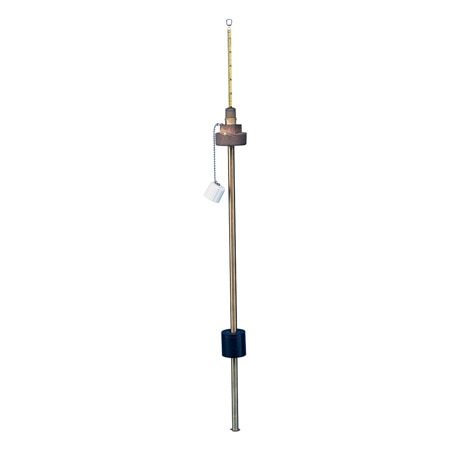

OMEGA LV-110 Drum Level Indicator (300 psi, 2 in, NPT Male)

Mounting: ± 30° Vertical

Probe Length: 22 in

Switch Rating: 20 VA

Probe Diameter: 0.5 in

Specific Gravity: 0.48

Materials, Wetted: Brass, Buna-N (NBR)

Media Compatibility: Oil, Solvents, Water

Operating Pressure Note: 750 psi for 316 SS float; 300 psi for Buna floats

Operating Pressure, Max: 300 psi

Process Connection Size: 2 in

Process Connection Type: NPT Male

Operating Temperature Note: 316 SS: -40 to 149°C (-40 to 300°F), Brass/Buna: To 82°C (180°F) in water, -40 to 110°C (-40 to 230°F) in oil

Operating Temperature, Max: 110 °C

Operating Temperature, Min: -40 °C
