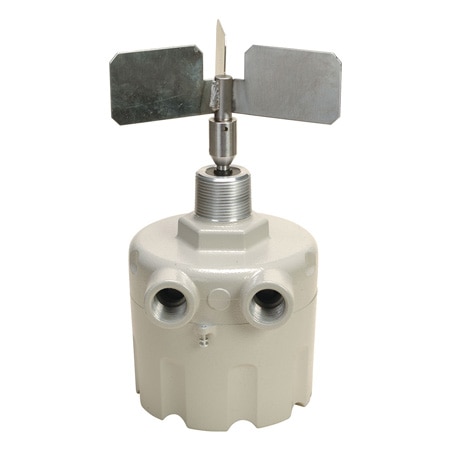

OMEGA LVD-803 Fail-Safe Dry Material Rotary Paddle Level Switches (NPT Male, 1 1/4 in, 115 Vac)

Weight: 3.9 kg

Approvals: Class I, Div. 1&2, Groups C, D; Class II, Div. 1&2, Groups E, F, G CE Mark

Materials: 304 Stainless Steel, Steel, NBR

Insulation: PVC

Sensitivity: 5 lb/ft3

Switch Type: SPDT NO/NC, Selectable

Switch Rating: 1 A @ 60 or 120 Vac/Vdc

Supply Voltage: 115 Vac

supply-voltage: 115 Vac

Sensitivity Note: 80 kg/m3 (5 lb/ft3) minimum material density (when using large 3-vane paddle)

Enclosure Ratings: IP66, NEMA Type 4

Supply Power Note: 115 Vac (± 15%); 9 VA; 50/60 Hz

Supply Power Type: AC

Media Compatibility: Dry Bulk Solids, Grain, Powders, Sand

Electrical Connection: 3/4 in NPT female Conduit with Screw Terminal block

Operating Pressure, Max: 30 psi

Process Connection Size: 1 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 65 °C

Operating Temperature, Min: -40 °C
