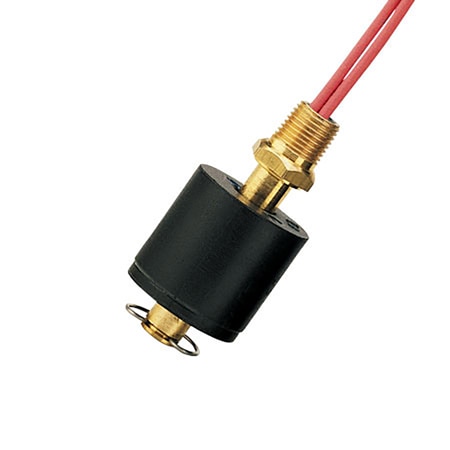

OMEGA LVN-20 NEMA-6 Vertical Mount Liquid Level Switches (225 psi, 1/4 in, NPT Male)

Approvals: CE, RoHS, UKCA, UL cULus

Insulation: PVC

Wire Gauge: 20 AWG

Switch Note: Approximately 1/2 the distance from the end of stem to mounting or halfway point of float travel

Switch Type: SPST

Cable Length: 24 in

Switch Rating: 1 A @ 60 or 120 Vac/Vdc

Specific Gravity: 0.7

Switch Operation: Selectable Normally Open or Normally Closed

Enclosure Ratings: IP68, NEMA Type 6

Materials, Wetted: 316 Stainless Steel, Brass, Buna-N (NBR)

Media Compatibility: Oil, Solvents, Water

Operating Pressure, Max: 225 psi

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature Note: Water: -40 to 82°C, Oil: -40 to 110°C

Operating Temperature, Max: 110 °C

Operating Temperature, Min: -40 °C
