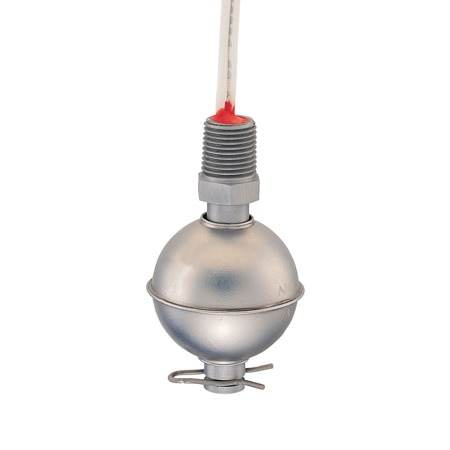

OMEGA LVN-50 Vertical Mount High Temperature 316 SS, Liquid Level Switches (1000 psi, 1/8 in, NPT Male)

Approvals: CE, RoHS, UKCA, UL cULus

Insulation: PVC

Wire Gauge: 20 AWG

Switch Note: Approx. 1/2 the distance from the end of stem to mounting or halfway point of float travel in liquid of 1.0 specific gravity.

Switch Type: SPST

Cable Length: 24 in

Switch Rating: 1 A @ 60 or 120 Vac/Vdc

Specific Gravity: 0.7

Switch Operation: Selectable Normally Open or Normally Closed

Enclosure Ratings: NEMA Type 6

Materials, Wetted: 316 Stainless Steel

Media Compatibility: Oil, Solvents, Water

Operating Pressure, Max: 1000 psi

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Operating Temperature, Max: 149 °C

Operating Temperature, Min: -40 °C
