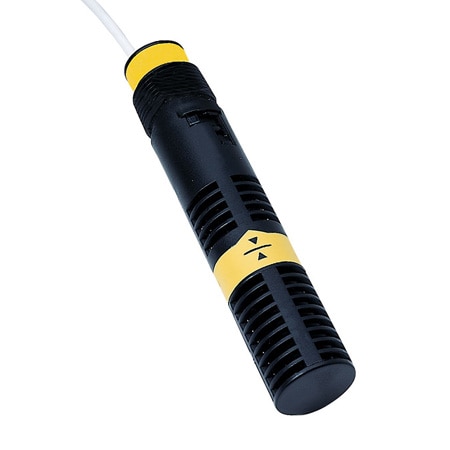

OMEGA LVV-111 Vertical Buoyancy Level Switch Sensors (25 psi, PVDF, 3/4 in, NPT Male)

Accuracy: ± 0.07 inH2O

Mounting: ± 20° Vertical

Insulation: Shield and PP or PFA Jacket

Wire Gauge: 22 AWG

Switch Type: SPDT NO/NC, Selectable

Cable Length: 500 ft

Probe Length: 4.5 in

Repeatability: ± 0.04 inH2O

Switch Rating: 15 VA @ 120 Vdc/Vac

Number of Wires: 3

Specific Gravity: 0.8 min

Switch Operation: Selectable Normally Open or Normally Closed

Enclosure Ratings: IP68, NEMA Type 6

Materials, Wetted: PVDF

Media Compatibility: Oil, Solvents, Water

Operating Pressure Note: 25 psi (2 bar) @ 25°C; derated @ 1.667 psi (0.113 bar) per °C above 25°C

Operating Pressure, Max: 25 psi

Process Connection Size: 3/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 90 °C

Operating Temperature, Min: -40 °C

Material Construction Option: PVDF
