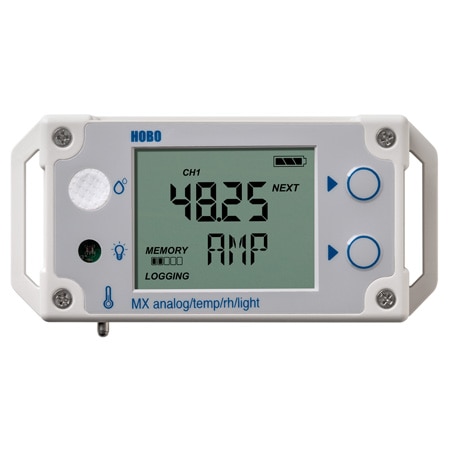

OMEGA MX1104 HOBO MX BLE Analog, Temp, RH, & Light Logger (0 to 100% RH, Magnetic Surface or Insert the tie wraps)

Width: 4.44 in

Height: 1.15 in

Length: 2.13 in

Memory: 4 MB

Weight: 4.34 oz

Display: LCD

Approvals: CE

Input Type: Internal, External

Stop Modes: Button Push, When Memory is Full, At set date and time, At set Duration

Form factor: Magnetic Surface or Insert the tie wraps

Memory Note: Approximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is from the logger

Radio Power: 1 mW

Samples,Max: ~1.9M Samples, Interval Selectable 1 sec to 18hrs

Start Modes: At set date and time, Button Push, Immediate Start, Next Interval

Battery life: 1 yr, typical with reading interval of 1 min

Display Note: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Memory Modes: stop when full, Wrap when full

Restart Mode: Push button

Accuracy Note: Temperature Sensor Accuracy: ± 0.20°C from 0° to 50°C (± 0.36°F from 32° to 122°F), Current Accuracy: ± 0.001 mA ± 0.2% of reading, Voltage Accuracy: 0 to 24 V: ± 1.0 mV ± 0.3% of reading, 0 to 2.5 V: ± 0.1 mV ± 0.1% of reading, 0 to 5 V: ± 0.2 mV ± 0.3% of reading, 0 to 10 V: ± 0.4 mV ± 0.3% of reading, RH: ± 2.5% from 10% to 90% (typical) to a maximum of ± 3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ± 5% typical

Configuration: HOBOmobile® app Android, iOS, iPadOS

Logging Modes: burst, Fixed interval

RH Resolution: 0.0001

Response Time: Temperature: 11 Min, RH: 30 sec

Time Accuracy: ± 1 minute/month at 25°C

Data Interface: Bluetooth

Light Accuracy: ± 10%

RH Sensor Drift: <1% Per Year

Resolution Note: Temperature Sensor Resolution: 0.002°C at 25°C

Current Accuracy: ± 0.001 mA

Form Factor Note: Use the four magnets on the back of the logger to mount it to a magnetic surface or insert the tie wraps through the mounting loops to attach it to other surfaces

Measurement Type: Current, Light Intensity, Relative Humidity, Temperature, Voltage

Voltage Accuracy: ± 1.0 mV

Enclosure Ratings: IP54

Supply Power Type: Battery

Current Resolution: Temperature: 0.002°C, Relative Humidity: 0.01%, Voltage: 384 µV, Current: 0.3 µA

Response Time Note: Temperature: 11 Minutes in air moving 1 m/s, RH: 30 seconds to 90% in airflow of 1 m/s

Transmission Range: 30.5 m

Voltage Resolution: 384 µV

RH Measurement Range: 0 to 100% RH

Temperature Accuracy: ± 0.20°C

Battery Size and Type: Alkaline AAA

Resistance Resolution: Temperature: 0.002°C, Relative Humidity: 0.01%, Voltage: 384 µV, Current: 0.3 µA

Logger with Cable Type: "Current: SD-MA-420 or CABLE-4-20mA Voltage: 0 to 24 V: SD-VOLT-24 or CABLE-ADAP24 0 to 2.5 V: SD-VOLT-2.5 or CABLE-2.5-STEREO 0 to 5 V: SD-VOLT-05 or CABLE-ADAP5 0 to 10 V: SD-VOLT-10 or CABLE-ADAP10"

Number of Measurements: 4

Temperature Resolution: 0.002 °C

Light Measurement Range: 0 to 167,731 lux

Temperature Sensor Drift: < 0.1°C Per Year

Current Measurement Range: 0 to 20.1 mA

Voltage Measurement Range: 0 to 2.5 V, 0 to 5.0 V. 0 to 10 V, 0 to 24 V

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C

Relative Humidity Accuracy: ± 2.5% RH
