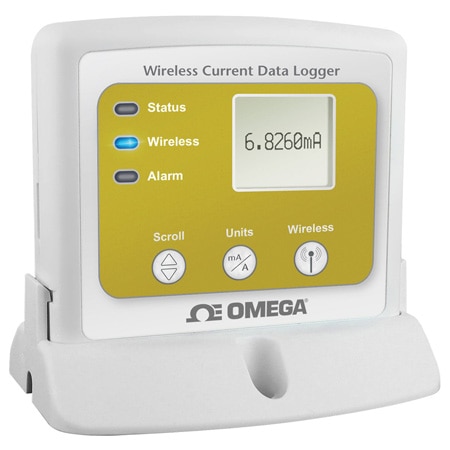

OMEGA OM-CP-RFCURRENT2000A-20MA Wireless Current Data Logger with Display (Current Sensor)

Width: 3.3 in

Height: 0.95 in

Length: 3.5 in

Weight: 4.1 oz

Software: XP SP3/Vista/7 and 8 (32 and 64-bit)

Baud Rate: 250000

Materials: Plastic

Alarm Note: User configurable audible, on-screen, email and text (SMS) alarms, Alarm Delay: A cumulative alarm delay may be set in which the device will activate the alarm (via LED) only when the device has recorded a user specified time duration of data, Audible Alarm Functionality: 1 beep per second for reading alarm above/below threshold

Input Type: External

Stop Modes: Manual via remote software connection, At set date and time, At set Duration

Calibration: Digital Calibration through Software

Samples,Max: 32256 Samples, Interval Selectable 1 Sec to 24 hrs

Sensor Type: Current Sensor

Start Modes: Delayed Start, Immediate Start

Battery life: 4 yr, typical with reading interval of 15 min

Current, Max: ± 232 mA for 2 Seconds

Display Type: LCD

Memory Modes: Yes

RF Frequency: 2.45 GHz

Configuration: Omega Engineering Data Recording Software, Windows PC

Response Time: Current: 0.15 sec

Time Accuracy: ± 1 minute/month

Band Frequency: 2.405 to 2.475 GHz

Data Interface: Wireless, USB

Conversion Time: 150 milliseconds

Impedance Input: 10 Ω

Nominal Current: -20 mA

Calibration Date: Automated

Measurement Type: Current

LED Functionality: Green LED blinks every 5 seconds to indicate unit is logging, Blue LED blinks every 15 seconds to indicate unit is in wireless mode, Red LED blinks every 1 second to indicate alarm condition

RF Frequency Note: 2.45GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication

Relative Humidity: 0 to 95% RH non-condensing

Supply Power Note: Max Voltage Between Inputs to Ground: 2.5 V

Supply Power Type: Battery

Current Resolution: 0.01 mA

Response Time Note: Current: 0.15 seconds at sensor

Band Frequency Note: ISM band 2.405 to 2.475 GHz operation (channels 11 through 25) @ 250 kbps data rate

Data Interface Note: USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000-EXT/ OM-CP-RFC1000-EXT-EUR/OM-CP-RFC1000-IP69K required for wireless operation

Frequency Rejection: 50 to 60 Hz

Real Time Recording: The device may be used with PC to monitor and record data in real-time

Calibration Accuracy: Current: ± 0.0025 mA

Battery Size and Type: Li-ion, 9V

Number of Measurements: 1

Temperature Coefficient: < ± 50 ppm/°C typical

Current Measurement Range: -2 to 30 mA

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
