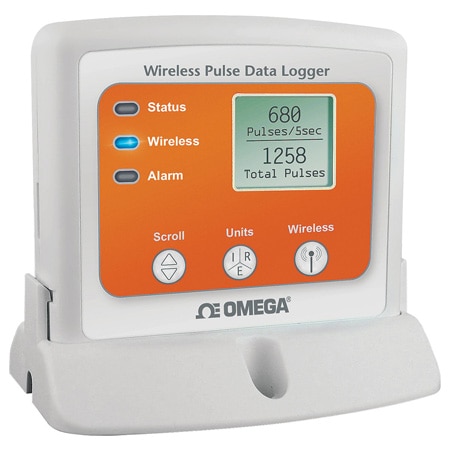

OMEGA OM-CP-RFPULSE2000A Wireless Pulse Data Logger with Display (Pulse, Wall Mount)

Width: 3.5 in

Height: 0.95 in

Length: 3 in

Weight: 4.1 oz

Display: LCD

Software: XP SP3/Vista/7 and 8 (32 and 64-bit)

Baud Rate: 250000

Materials: Plastic

Input Type: External

Form factor: Wall Mount

Samples,Max: 16128 Samples, Interval Selectable 1 Sec to 24 hrs

Sensor Type: Pulse

Start Modes: Delayed Start, Immediate Start

Battery life: 3 yr, typical with reading interval of 1 min

Display Note: Displays pulse/interval count and total count

Memory Modes: Yes

RF Frequency: 2.45 GHz

Configuration: Omega Data Logging Software, Windows PC

Response Time: Pulse: 10 µS

Time Accuracy: ± 1 minute/month

Band Frequency: 2.405 to 2.475 GHz

Data Interface: Wireless, USB

Measurement Type: Pulse

LED Functionality: Green LED blinks every 5 seconds to indicate unit is logging, Blue LED blinks every 15 seconds to indicate unit is in wireless mode, Red LED blinks every 1 second to indicate alarm condition

RF Frequency Note: 2.45GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication

Relative Humidity: 0 to 95% RH non-condensing

Supply Power Type: Battery

Response Time Note: Pulse: 10 µs

Band Frequency Note: ISM band 2.405 to 2.475 GHz operation (channels 11 through 25) @ 250 kbps data rate

Data Interface Note: USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000-EXT/ OM-CP-RFC1000-EXT-EUR/OM-CP-RFC1000-IP69K required for wireless operation

Calibration Accuracy: Pulse: 512 ± 1 pulses/second

Battery Size and Type: Li-ion, 9V

Number of Measurements: 1

Temperature Resolution: 0.01 °C

Pulse Measurement Range: Input low <720 mV, input high >1.070V

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
