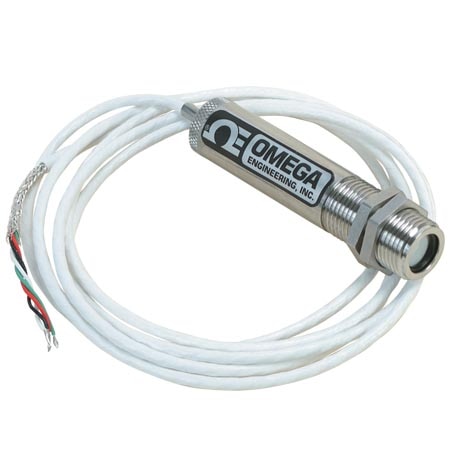

OMEGA OS136A-2-MV-C Miniature IR Infrared Sensor Transmitter -18 to 538 °C (6:1, 538 °C, 10 mV/°C)

Weight: 181 g

Laser Power: <1 mW

Cable Length: 6 ft

Field of view: 6:1

Output Detail: 10 mV/°C

Output Signal: Millivolt

Repeatability: 0.01

Response Time: 150 ms

Thermal shock: About 30 minutes for 25°C abrupt ambient temperature change

Alarm Setpoint: Adjustable, 0 to 100%

Housing Length: 89 mm

Supply Current: 50 mA

Supply Voltage: 12 to 24 Vdc

Emissivity Note: Fixed at 0.95

Emissivity, Max: 0.95

Emissivity, Min: 0.5

Housing Material: 316 Stainless Steel

Electrical Output: 10 mV/°C

Enclosure Ratings: IP66, NEMA Type 4

Field of View Note: 6 to 1 (distance to spot size)

Repeatability Note: 1% of rdg

Response Time Note: 150 msec, 0 to 63% of final value

Warm-Up Period, Max: 2 m

Warm-Up Period, Min: 1 m

Housing Material Note: 316 SS, NEMA 4 (IP66) rated

Housing Outer Diameter: 19 mm

Laser Wavelength Color: 630 to 670 nm

Relative Humidity Note: Less than 95% RH, non-condensing

Relative Humidity, Max: 0.95

Spectral Response, Max: 14 μm

Spectral Response, Min: 5 μm

Operating Distance, Max: 9.1 m

Process Temperature, Max: 538 °C

Process Temperature, Min: 149 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: 0 °C
