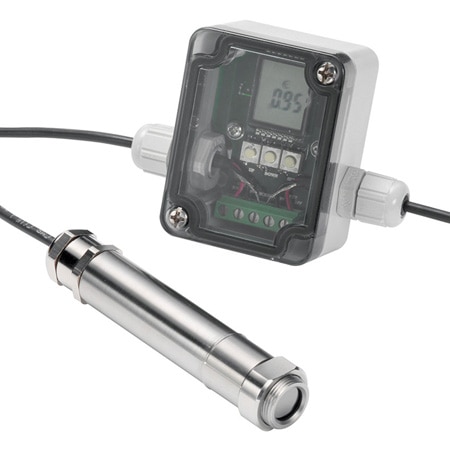

OMEGA OS212-MT Fixed Infrared Temperature Sensor w/ adjustable emissivity and optional display (2:1, 250 °C)

Weight: 95 g

Display: No

Accuracy: ± 1 %

Impedance: 900 Ω

Weight Note: 95 g (3.4 oz) with cable

Cable Length: 3.3 ft

Accuracy Note: ± 1% of reading or ± 1ºC whichever is greater

Field of view: 2:1

Output Signal: Current

Repeatability: ± 0.5%

Response Time: 240 ms

Sensor Voltage: 6 Vdc

Supply Voltage: 24 to 28 Vdc

Emissivity Note: 0.2 to 1.0 via 4 to 20 mA input

Emissivity, Max: 1

Emissivity, Min: 0.2

Housing Material: Stainless Steel

Cable Length Note: 1 m (3.3') (included) longer lengths available to order

Enclosure Ratings: IP65

Temperature Range: MT-Medium

Repeatability Note: ± 0.5% of reading or ± 0.5ºC whichever is greater

Response Time Note: 240 mS (90% response)

Sensing head Mounting: 16 mm

Relative Humidity Note: 95% max non-condensing

Relative Humidity, Max: 0.95

Spectral Response, Max: 14 μm

Spectral Response, Min: 8 μm

Process Temperature, Max: 250 °C

Process Temperature, Min: 0 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: 0 °C
