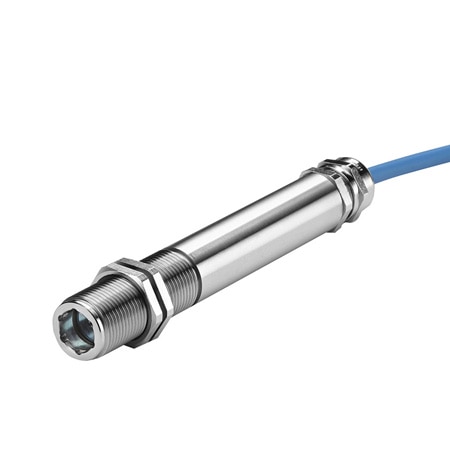

OMEGA OSAT-301-XT-C-25 Intrinsically Safe IR Sensor for Hazardous Locations (30:1, 1000 °C)

Weight: 475 g

Weight Note: 475 g (1 lb), with 5 m (16.4') cable

Cable Length: 25 m

Current Draw: 25 mA

Accuracy Note: ± 1°C or 1%, whichever isgreater

Field of view: 30:1

Output Signal: Current

Repeatability: ± 0.5%

Response Time: 240 ms

Housing Length: 150 mm

Supply Voltage: 12 to 24 Vdc

Emissivity Note: 0.20 to 1.00 (pre-set to 0.95)

Emissivity, Max: 1

Emissivity, Min: 0.2

Housing Diameter: 20 mm

Housing Material: 316 Stainless Steel

Cable Length Note: 5, 10 or 25 m (16.4, 32.8, 82') as standard (custom lengths also available) Weight: 475 g (1 lb), wi

Enclosure Ratings: IP65, NEMA Type 4

Supply Power Note: 32 to 24 Vdc, ± 5%

Repeatability Note: ± 0.5°C or 0.5%, whichever is greater

Response Time Note: 240 ms (90% response)

Sensing head Mounting: 20 mm

Relative Humidity Note: 95% non-condensing maximum

Relative Humidity, Max: 0.95

Spectral Response, Max: 14 μm

Spectral Response, Min: 8 μm

Process Temperature, Max: 1000 °C

Process Temperature, Min: 0 °C

Emissivity Setting Method: USB

Operating Temperature, Max: 70 °C

Operating Temperature, Min: 0 °C
