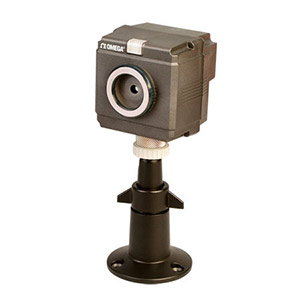

OMEGA OSXL-101-25H Thermal imager (100 to 800°C, 25° x 25°)

Specifications

Temp Range: 100 to 800°C (212 to 1472°F)

Working Temp: -10 to 50°C (14 to 122°F)

Working RH: 10 to 80% RH (no dew condensation)

Temperature Resolution: 0.5°C

Accuracy: ±1% of reading or ±3°C whichever larger (at ambient temp of 25°C ±2°C)

Detector: Thermopile array, 48 x 47 pixels

Wavelength: Center wavelength 10µm

Viewable Angle: 25° x 25°

Radius Resolution: 9.1 mrad

Frame Speed: 3 fps (1 fps for alarm output)

Focus: Fixed focus

Emissivity: 0.10 to 1.00

Ethernet: 10BASE-T/100BASE-TX

Alarm: 2 SPST (non-voltage contact output)

Power Supply: 12 to 24 Vdc

Current Consumption: Maximum 2.5VA @ 12 Vdc

Inrush Current: Maximum 1A @12 Vdc (the inrush current should be considered for the selection of power)

Casing: Polycarbonate (color: black)

Weight: Approximately 150 g (5.2 oz) (sensor only)

Protection: NEMA 4 (IP65) (with provided exclusive cable and tripod screw)

Standards: CE (EN61326 Annex A)

Standard delivery

Operator’s manual

Software CD

Mounting stand

Power supply

LAN cable

Power/alarm cable

Mounting screws

Plugs, lens and connector caps
