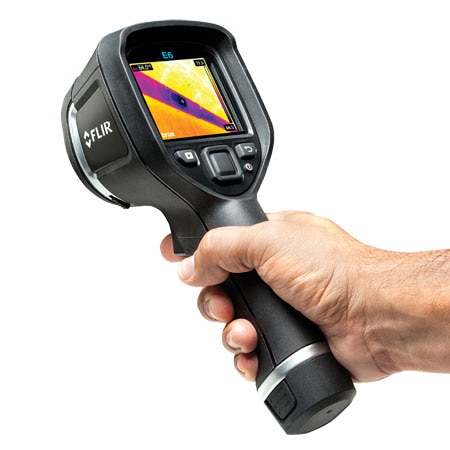

OMEGA OSXL-E4 -20 °C to 250 °C Temperature Handheld Thermal Imager, High Resolution (45° x 34°, 80 x 60 pixels, 250 °C)

Drop: 2 m

Alarm: None

Focus: Focus-Free

Width: 95 mm

Height: 244 mm

Length: 140 mm

Weight: 0.58 kg

Frame Rate: 9 Hz

Image Modes: IR image, visual image, MSX, thumbnail gallery

Battery life: 4 hr

Display Size: 76 mm (3.0 in)

File Formats: JPEG

Storage Mode: Simultaneous storage of images in IR, visual and MSX

Accuracy Note: ± 2% or 2°C

Detector Type: Focal Plane Array (FPA) uncooled microbolometer

Field of view: 45° x 34°

Color Palettes: Iron, rainbow, and gray

MSX Resolution: 320 x 240

Emissivity Note: Variable from 0.1 to 1.0

Emissivity, Max: 1

Emissivity, Min: 0,1

Set-up Commands: Date Format, Language, Time Format, Units

Storage Capacity: Internal memory store at least 500 sets of images

Display Size Note: 76 mm (3.0"), 320 x 240 color LCD

Picture-in-Picture: None

Infrared Resolution: 80 x 60 pixels

Thermal Sensitivity: <0.15 °C

ROI Measurement Modes: 1 Mode

Object Temperature, Max: 250 °C

Object Temperature, Min: -20 °C

ROI Measurement Modes Note: Spot (center) mode

Multi-Spectral Dynamic Imaging (MSX): IR image with enhanced detail presentation
