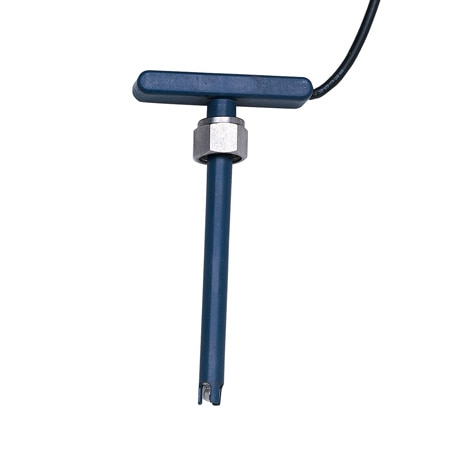

OMEGA PHE-5432-10 Steam Sterilizable 12 mm pH Electrodes (pH, 135 °C, 0 to 14.00 pH)

Drift: <2 mV per week

Length: 0 mm

Accuracy: ± 0.1 %

Diameter: 0 mm

Sensor Type: N/A

Cable Length: 10 ft

Sodium Error: Less than 0.05 pH in 0.1 Molar Na+ ion @ 12.8 pH

Reference Cell: Double junction, KCl/AgCl, KNO3

Measurement Type: pH

Construction Type: N/A

Enclosure Material: PTFE, Glass

Reference Junction: Porous PTFE

Zero/Balance Error: 7.0 ±0.2 pH

PH Measurement Range: 0 to 14.00 pH

Additional Features 1: Glass body, porous PTFE liquid junction pH electrode

Electrical Connection: N/A

Operating Pressure, Max: 500 psig

Process Connection Size: N/A

Process Connection Type: N/A

Temperature Sensor Type: N/A

Process Temperature, Max: 135 °C

Process Temperature, Min: -5 °C

Datasheet
