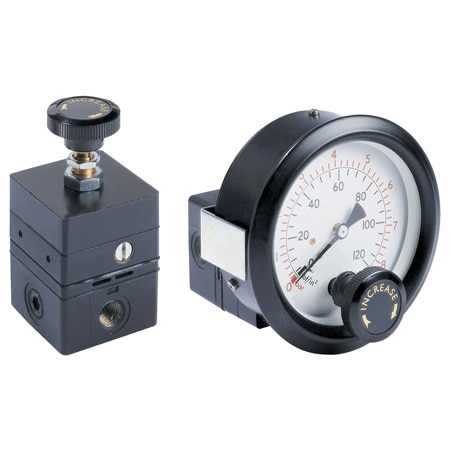

OMEGA PRG101-120 Pressure Regulators for Dry Gasses with Dial Gauge Port (Gauge, 120 psi, NPT Female, 1/4 in, IP65)

Weight: 750 g

Accuracy: ± 0.02 %

Mounting: Any attitude; integral mounting nut supplied

Materials: Epoxy, Die Cast Zinc, NBR, Beryllium-copper

Hysteresis: 0.0005

Sensitivity: 0.005 psi

Accuracy Note: 0.02% Regulation Accuracy (15 psi Supply Pressure Change at Midrange)

Pressure Type: Gauge

Repeatability: 0.0005

Response Time: 0.2 sec

Enclosure Ratings: IP65

Response Time Note: 0.2 sec Response Time to 50% Load Change

Media Compatibility: Air, Argon, Clean Dry Air, Nitrogen

Output Pressure, Max: 120 psi

Output Pressure, Min: 2 psi

Total Air Consumption: 0.04 SCFM

Process Connection Size: 1/4 in

Process Connection Type: NPT Female

Air Supply Pressure, Max: 150 psi

Air Supply Pressure, Min: 3 psi

Volumetric Flow Rate, Max: 10 SCFM

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C

Total Air Consumption Note: 0.04 SCFM Consumption @ Mid Range

Number of Turns in Control Range: 2.5
