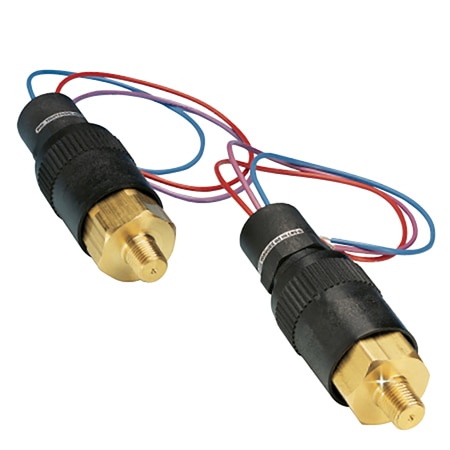

OMEGA PSW-804 OEM Mechanical Pressure Switch for Harsh Environments (Gauge, NPT Male, 1/2 in)
Manufacturer: OMEGA Model: PSW-804 - Contact
Weight: 0.95 lb
Deadband: 1.5 to 6 psi
Diameter: 1.5 in
Materials: Plastic
Sensor Type: Diaphragm
Switch Type: SPST
Deadband Type: Fixed
Pressure Type: Gauge
Repeatability: ± 1%
Switch Rating: 5 A maximum @ 125/250 Vac, silver serrated contacts 3 A max @ 28 Vdc
Burst Pressure: 2000 psi Maximum
Control Output: SPST Relay
Proof Pressure: Up to 1000 psi
Thermal Effects: <1% for 25°C (45°F) change
Materials, Wetted: Brass, Buna-N (NBR)
Repeatability Note: ± 1 of span
Electrical Connection: 1/2 NPT female Conduit with Wire Leads
Wiring/Connector Table: Red - N/C, Blue - N/O, Purple - Common
Process Connection Size: 1/2 in
Process Connection Type: NPT Male
Decreasing Pressure, Max: 44 psi
Decreasing Pressure, Min: 8.5 psi
Increasing Pressure, Max: 50 psi
Increasing Pressure, Min: 10 psi
Process Temperature, Max: 75 °C
Process Temperature, Min: -30 °C
