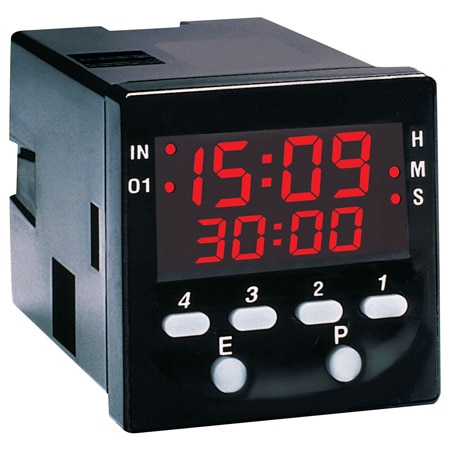

OMEGA PTC-21 1/16 DIN Multi-Programmable LED Timers, 4-Digit Dual Line Display (Dual 4 Digit LED, 90 to 240 Vac)
Manufacturer: OMEGA Model: PTC-21 - Contact
Width: 48 mm
Height: 48 mm
Length: 85 mm
Memory: Non-volatile
Weight: 100 g
Inhibit: NPN or Dry Contact
Accuracy: ± 0.01 %
Frequency: 50/60 Hz
Impedance: 10 kΩ
Resolution: Settable for time values in hours/minutes/seconds ranges
Form factor: 1/16 DIN
Timer Range: Hours, minutes, seconds; hours, minutes; minutes, seconds
Control Mode: Repeat Cycle: Batch stop, batch continue and interval
Display Note: Dual-line, 4-digit, 7-segment LED, 8 mm H (0.31")
Display Type: Dual 4 Digit LED
Contact Rating: Timed relay, DPDT (5 A)
Humidity Range: 5 to 95% RH, non-condensing
Supply Voltage: 90 to 240 Vac
Activation Time: 21 ms
Measurement Type: Time
Number of Relays: 1
Cutout Dimensions: 45 x 45 mm
Enclosure Ratings: IP65
Power Consumption: 10 VA
Supply Power Type: AC
Inputs Start and Reset: NPN or dry contact
Storage Temperature, Max: 90 °C
Storage Temperature, Min: -40 °C
Number of Timer Functions: 5
Operating Temperature, Max: 55 °C
Operating Temperature, Min: 0 °C
