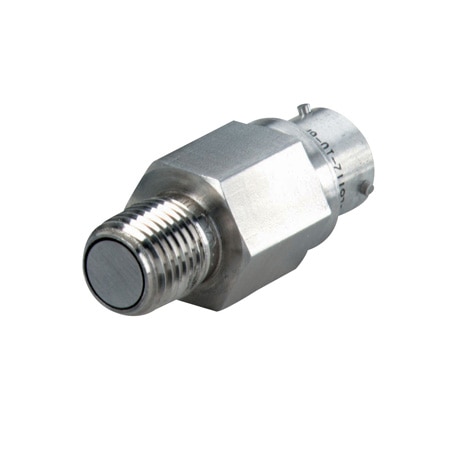

OMEGA PX61C1-5KGV Miniature, Flush Diaphragm Pressure Transducers (Gauge, 5000 psi, NPT Male, 1/4 in)

Weight: 50 g

Accuracy: ± 1 %

Accuracy Note: 1.0% linearity and hysteresis combined; calibrated at 0%, 50%, 100%, 50%, 0%

Output Signal: Millivolt

Pressure Type: Gauge

Pressure, Max: 5000 psi

Pressure, Min: 0 psi

Accuracy Class: > 0.25%

Burst Pressure: 5x Full Scale

Proof Pressure: 150% Full Scale

Supply Voltage: 5 Vdc

Mating Connector: MIL-26482-I 10-6S

Bridge Resistance: 350 Ω

Electrical Output: 2 mV/V

Materials, Wetted: 17-4 Stainless Steel

Zero/Balance Error: ± 1% FS

Burst Pressure Note: 500% of capacity

Proof Pressure Note: 150% of capacity

Repeatability Error: 0.1% of FSO

Additional Features 1: None

Electrical Connection: MIL-26482-I 10-6P

electrical-connection: MIL-26482-I 10-6P

Electrical Output Note: Range @ 50 psi = 1 mV/V; range >100 psi: 2 mV/V

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 121 °C

Operating Temperature, Min: -54 °C

Compensated Temperature, Max: 71 °C

Compensated Temperature, Min: 16 °C

Thermal Effect on Span error, Max: ± 0.02% FSO/°F

Thermal Effect on Zero error, Max: ± 0.02% FSO/°F , ± 0.01% FSO/°F
