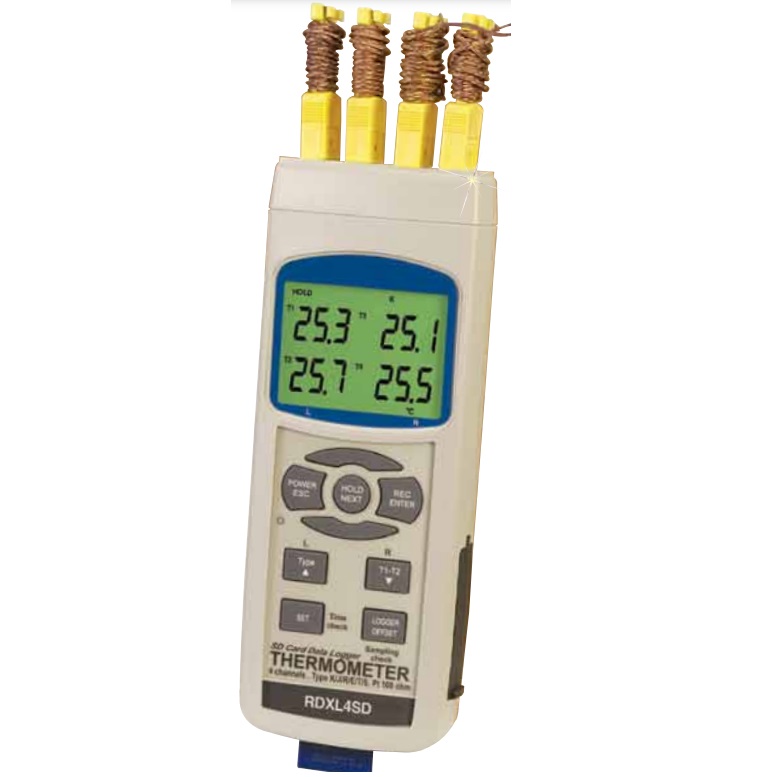

OMEGA RDXL4SD 4-channel digital thermometer (-50.1~1300ºC, SD 2GB, 2CH)

SPECIFICATIONS

Embedded Microcontroller: Custom one-chip LSI device

LCD Display: 82 x 61 mm (3.23 x 2.40") with green color backlight

4 Channels: T1, T2, T3, T4, T1-T2

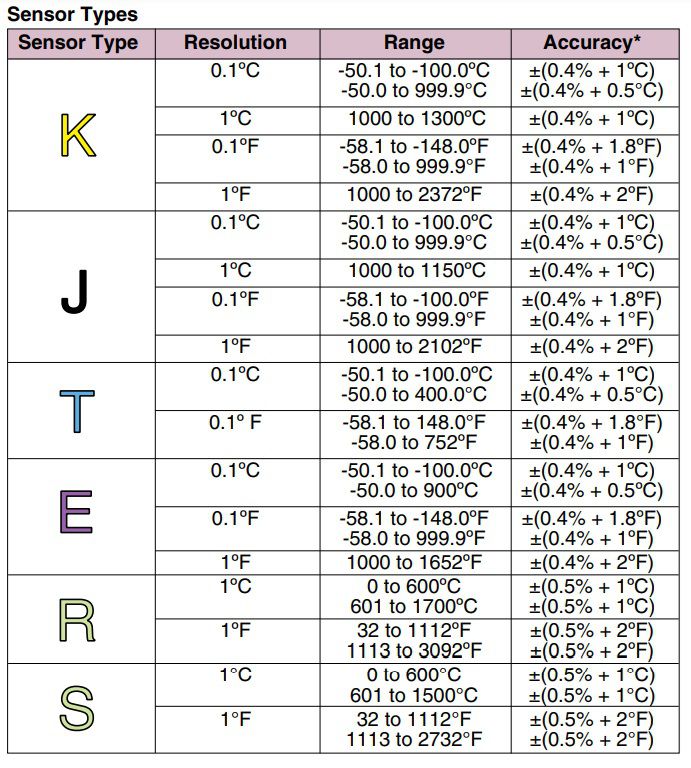

Sensor: Type J, K, T, E, R/S thermocouple probe Pt100 Ω (european curve) for RDXL4SD model only

Resolution: 0.1/1ºC or ºF

Sampling Time: 1 to 3600 seconds

Memory Card: SD memory card 2GB

Memory Recall: Max and min value

Sampling Time of Display: Approx 1 second

Data Output: RS232/USB PC computer interface

Power Off: Auto shut off saves battery life or manual off by push button

Operating Temperature: 0 to 50ºC (32 to 122ºF)

Operating Humidity: Less than 85% RH

Power Supply: Alkaline or heavy-duty DC 1.5V battery (UM3, AA) x 6 “AA”, (RDXL4SD) or 8 “AA” (RDXL12SD)

Power Current: Approx DC 30 mA

Weight: 489 g (1.08 lb)

Dimensions: 177 H x 68 W x 45 mm D (7 x 2.7 x 1.9")

Comes complete with 4 beaded wire Type K thermocouples probe, 6 “AA” batteries, 2 GB SD memory card, soft carrying case and

operator’s manual
