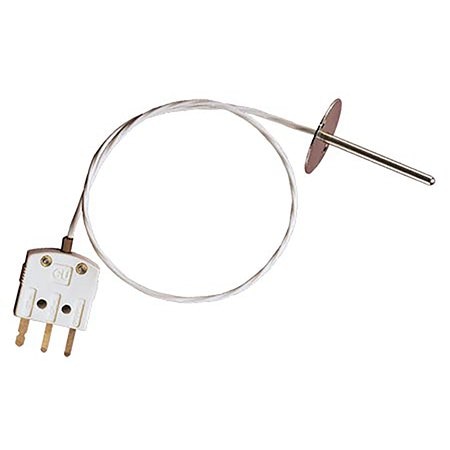

OMEGA RTD-805-OTP RTD Sensors for Specialized Applications (3-Prong Standard Male Thermocouple Connector, 230 °C, Class A)

Accuracy: Class A

Wire Type: Stranded

Insulation: PFA

Probe Type: High-Accuracy Fluid Immersion RTD Sensors

Wire Gauge: 26 AWG

Cable Length: 40 in

Probe Length: 1.25 in

Probe Diameter: 0.5 in

Number of Wires: 3

Sheath Material: 304 Stainless Steel

Nominal Resistance: 100 Ω

Electrical Connection: 3-Prong Standard Male Thermocouple Connector

electrical-connection: 3-Prong Standard Male Thermocouple Connector

Temperature Probe Style: Air Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 230 °C

Process Temperature, Min: -50 °C

Nominal Resistance/Curve Note: Class A Per IEC60571
